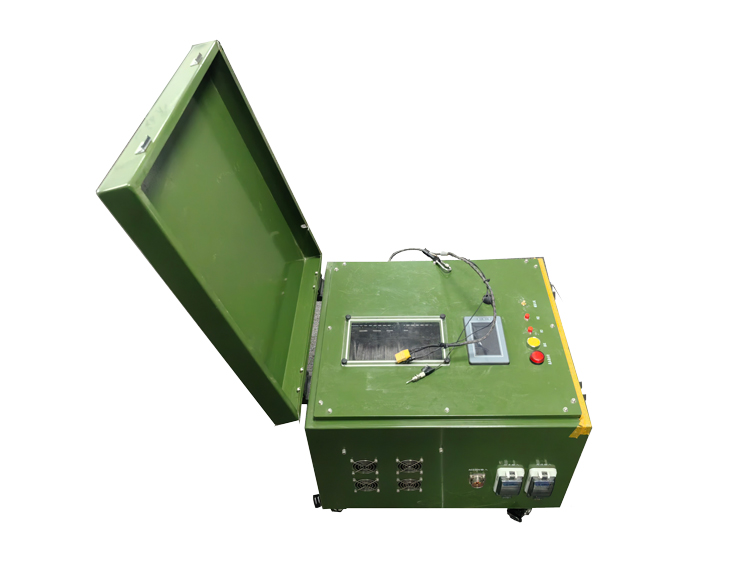

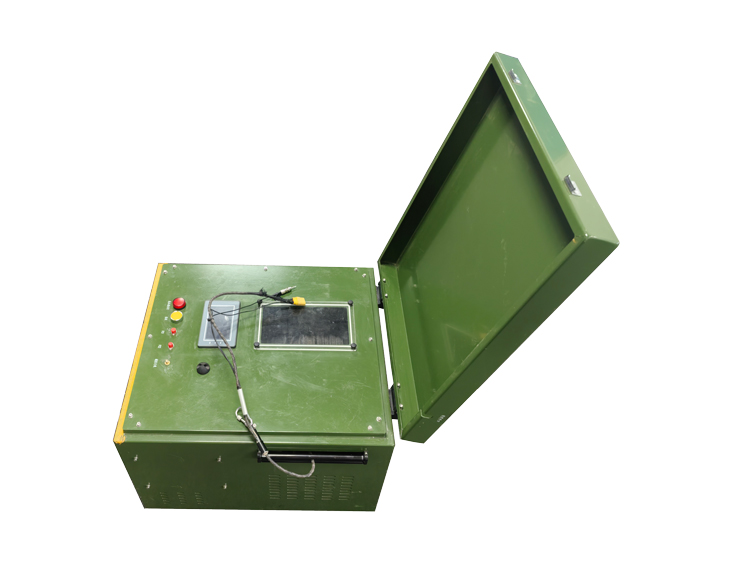

100 Meter Tethered Drone Power Box

　　Input voltage range: AC220V ± 20% 45Hz~65Hz

　　Output voltage range: 200-810VDC (Rated output voltage: 800V)

　　Power: 7KW (optional 30kW)

　　Storage cable length: 110 meters meters

　　Tethered Drone Power System：

　　1. Advanced power conversion technology, with a typical efficiency of up to 96%, ensures stable and efficient power supply for drones during long-term flight.

　　2. The mooring box is equipped with intelligent automatic retraction and cable arrangement, and can also switch to manual mode by rotating the reel to retract and release cables. Configuring a 4.3-inch color screen with touch control is more user-friendly and convenient, with functions such as displaying box temperature, wire length, current and voltage, electricity consumption, torque adjustment, switching between Chinese and English, recording abnormal information, and a forced collection button. Relevant abnormalities will be promptly alerted through auxiliary reminders such as sound and light.

　　100 Meter Tethered Drone Power Box: Complete Maintenance and Design Guide

　　Introduction to Compact Tethered Power Solutions

　　The 100-meter tethered drone power box represents the optimal entry point into persistent aerial operations, delivering the perfect balance between portability and performance for numerous commercial applications. This compact yet powerful system enables continuous drone flight for up to 24 hours or more, eliminating the traditional limitations of battery-powered drones while maintaining exceptional ease of deployment. Designed specifically for rapid-response teams, event security details, and short-range inspection crews, this power solution brings industrial-grade endurance to field-operable packages.

　　Environmental considerations have been central to this product's development, resulting in a system that not only reduces operational waste through reusable power but also incorporates sustainable manufacturing practices throughout its lifecycle. This comprehensive guide explores the daily maintenance requirements, fundamental design principles, complete component inventory, and ecological advantages that make the 100-meter system an intelligent choice for environmentally conscious organizations.

　　Routine Maintenance Procedures for Optimal Performance

　　Daily Operational Checks

　　Establishing consistent pre-flight inspection routines ensures system reliability and identifies potential issues before they impact operations. Begin each deployment with a visual examination of the power box exterior, checking for new dents, cracks, or signs of impact damage. Verify the integrity of all connection ports, paying special attention to the AC input socket and tether output connector. Inspect ventilation openings for debris accumulation that could impede airflow and cause overheating. Power on the unit and confirm all status indicators display normal readings before connecting the tether and drone system.

　　The tether cable requires particular attention during daily inspections. Carefully examine the first 10 meters of cable near connection points for fraying, kinks, or insulation damage. Check both ends of the tether connector for bent pins, corrosion, or foreign material that could compromise the connection. Verify the strain relief mechanisms at both termination points remain secure and undamaged. These simple checks require less than five minutes but significantly reduce the risk of operational failure.

　　Weekly Maintenance Protocols

　　Weekly maintenance procedures focus on preventive care and performance verification. Thoroughly clean the exterior surfaces using a soft, lint-free cloth slightly dampened with isopropyl alcohol for stubborn stains. Remove and clean the air intake filters using compressed air or gentle washing with mild detergent, ensuring complete drying before reinstallation. Test all electrical safety features including ground fault detection and overload protection circuits using the built-in diagnostic functions.

　　Perform a comprehensive power quality test under simulated load conditions to verify voltage stability and current delivery capability. Check the backup battery system state of charge and run the automatic self-test function to ensure emergency power availability. Update operational logs with performance data, maintenance actions, and any observed anomalies for trend analysis and warranty documentation.

　　Monthly Comprehensive Maintenance

　　Monthly maintenance involves more detailed inspection and calibration procedures. Conduct thermal imaging of operating components to identify potential hot spots before they develop into failures. Verify calibration of all monitoring sensors including voltage, current, and temperature measurement systems. Perform internal inspection for dust accumulation, paying particular attention to power components and cooling system pathways.

　　Execute extended duration testing at 80% of maximum rated capacity for 60 minutes to verify thermal management performance under sustained load. Inspect all internal electrical connections for tightness and signs of overheating. Complete firmware updates if available and reset usage counters for consumable components based on operational hours. Document all findings in the maintenance management system for predictive maintenance planning.

　　Innovative Design Philosophy and Engineering Principles

　　User-Centered Operational Design

　　The 100-meter system embodies a design philosophy prioritizing user experience without compromising technical capability. Every aspect of the system has been optimized for single-operator deployment in less than three minutes, featuring color-coded connections, intuitive interface design, and logical operational sequencing. The physical layout places frequently accessed controls and indicators on the forward-facing surface, while serviceable components are easily accessible through tool-less entry panels.

　　The human-machine interface incorporates cognitive design principles to reduce operator workload. The status display utilizes universal color coding (green-normal, yellow-warning, red-critical) supported by explicit text descriptions of system states. Auditory alerts provide immediate feedback for critical conditions without requiring constant visual monitoring. The control layout follows natural workflow patterns, enabling instinctive operation even in high-stress situations.

　　Robust Engineering for Demanding Environments

　　Structural integrity has been prioritized throughout the mechanical design process. The main enclosure utilizes rotationally molded composite material providing exceptional impact resistance while maintaining 35% lighter weight than equivalent aluminum enclosures. Internal components are mounted using vibration-isolating retention systems that protect against transportation and operational shocks. All external connectors feature IP67-rated sealing systems that prevent moisture ingress during wet weather operations.

　　The thermal management system employs passive cooling principles wherever possible, reducing power consumption and acoustic signature. Strategically placed heat sinks direct thermal energy away from sensitive components, while the variable-speed fan system only activates when necessary for temperature control. This intelligent cooling approach extends component life while maintaining silent operation during typical use conditions.

　　Modular Architecture for Serviceability and Upgrades

　　A modular design approach ensures long-term serviceability and future capability enhancements. The system is divided into six key functional modules: power input conditioning, primary power conversion, system control, tether interface, backup power, and user interface. Each module can be independently replaced in the field using basic tools, dramatically reducing repair times and minimizing spare parts inventory requirements.

　　The modular architecture also enables performance upgrades as technology advances or mission requirements evolve. Users can upgrade specific capabilities without replacing the entire system, significantly extending the operational lifespan and reducing lifecycle costs. Standardized interfaces between modules ensure compatibility across product generations, protecting investments in accessories and training.

　　Complete Component Inventory and Specifications

　　Primary System Components

　　Main Power Unit Enclosure: Composite construction with carrying handles, dimensions 400mm × 300mm × 200mm, weight 8.5kg

　　Power Conversion Module: 900W continuous output, 85-265V AC wide input range, >93% conversion efficiency

　　System Control Module: 32-bit ARM processor, real-time operating system, 8GB data logging capacity

　　Tether Interface Assembly: Quick-disconnect connector, integrated strain relief, status indicators

　　User Interface Panel: 4.3-inch color LCD, capacitive touch interface, waterproof membrane keypad

　　Backup Power System: Lithium iron phosphate chemistry, 15-minute emergency operation capability

　　Tether System Components

　　Hybrid Tether Cable: 100-meter length, 6mm diameter, 45kg breaking strength

　　Power Conductors: 12AWG high-strand count copper, 600V rating

　　Fiber Optic Elements: Single-mode glass fiber, dual redundant channels

　　Environmental Protection: UV-resistant jacket, abrasion-resistant weave, low-smoke zero-halogen material

　　Connection System: Gold-plated power contacts, angled physical keying, positive locking mechanism

　　Accessory and Support Components

　　Power Input Cables: International cable set with regional plug adapters, 3-meter length

　　Transportation Case: Custom molded foam interior, waterproof seal, pressure equalization valve

　　Field Maintenance Kit: Connector cleaning tools, voltage tester, basic hand tools

　　Documentation Package: Quick start guide, comprehensive manual, compliance certificates

　　Ground Stake System: Folding design, multiple soil engagement options, guy wire attachments

　　Optional Enhancement Components

　　Solar Input Module: Maximum Power Point Tracking technology, 600W maximum input

　　External Battery Module: 2-hour extended operation, hot-swappable capability

　　Remote Monitoring System: 4G/LTE connectivity, web dashboard access

　　Environmental Sensor Package: Weather station integration, automatic shutdown triggers

　　Mobile Mounting Platform: Vehicle attachment system, vibration damping

　　Environmental Performance and Sustainable Design

　　Energy Efficiency and Carbon Reduction

　　The power conversion system achieves exceptional efficiency ratings that directly translate to reduced energy consumption and operational costs. With 93% typical efficiency across the operating range, the system minimizes wasted energy as heat, reducing cooling requirements and improving reliability. This efficiency advantage becomes particularly significant during extended operations, where traditional generator-based systems might consume 40% more fuel for equivalent power output.

　　The system enables substantial carbon footprint reduction through multiple mechanisms. Continuous operation eliminates the carbon emissions associated with multiple battery charging cycles, particularly in regions where grid electricity originates from fossil fuels. The capability to operate from solar input provides true zero-emission operation during daylight hours, while the highly efficient power pathway ensures minimal energy waste regardless of power source.

　　Sustainable Materials Selection

　　Material choices reflect a comprehensive life-cycle assessment approach to environmental responsibility. The composite enclosure incorporates 30% recycled content while remaining fully recyclable at end-of-life. Circuit boards utilize halogen-free substrates and lead-free solder processes, while conformal coatings are water-based rather than solvent-based. Cable systems employ jackets manufactured from bio-based plastics derived from renewable plant sources.

　　The product packaging demonstrates similar environmental commitment, utilizing molded pulp cushions from recycled paper instead of plastic foam. Shipping materials are 100% recyclable and printed with soy-based inks. Documentation is provided digitally with minimal printed quick-start guides on recycled paper, reducing paper consumption by 85% compared to traditional printed manuals.

　　Extended Product Lifespan and Serviceability

　　Design decisions prioritize longevity and repair over replacement, fundamentally reducing waste generation. The modular architecture enables component-level repair instead of complete unit replacement, while the standardized interfaces ensure parts availability throughout the product's lifespan. Firmware updates deliver performance improvements and new features to existing hardware, extending functional relevance without hardware replacement.

　　The company supports this approach through extended parts availability guarantees, with critical components guaranteed available for minimum 7 years after product discontinuation. Repair documentation and training are provided to regional service centers, facilitating local repair capabilities that reduce shipping-related emissions. The company-operated repair program includes options for refurbishment and recertification of customer-returned units, giving equipment a second life through the resale channel.

　　End-of-Life Management and Circular Economy Integration

　　A comprehensive product stewardship program ensures responsible management at end-of-life. The manufacturer offers take-back services in all markets, with returned equipment disassembled for component reuse and material recycling. Precious metals from electronic components are recovered through certified refiners, while plastics are processed into raw material for new products. The program currently achieves 88% material recovery by weight, with a goal of 95% by 2025.

　　The circular economy approach extends to remanufactured systems offered through the company's renewal program. Units returned through take-back programs are completely refurbished, updated with latest components where beneficial, and recertified to original performance specifications. These systems carry the same warranty as new equipment while reducing resource consumption by 65% compared to manufacturing new units.

　　Conclusion: Professional Performance with Environmental Responsibility

　　The 100-meter tethered drone power box delivers professional-grade persistent power while establishing new standards for environmental responsibility in its category. The thoughtful maintenance protocols ensure reliable operation across thousands of service hours, while the innovative design approach balances performance with usability. The comprehensive component system supports everything from basic operation to advanced capabilities through carefully considered accessories and upgrades.

　　Most significantly, the system demonstrates that environmental performance and professional capability are complementary rather than competing objectives. Through efficient operation, sustainable materials, extended product lifespan, and circular economy integration, the 100-meter system provides a template for how professional equipment can deliver exceptional performance while minimizing environmental impact. For organizations seeking to enhance their operational capabilities while advancing their sustainability goals, this system represents an optimal solution that delivers on both fronts without compromise.
