Airborne Power

　　1. The onboard power supply reduces the high voltage direct current of the Ground Mooring Box to a low voltage direct current stable output suitable for unmanned aerial vehicle power supply (such as 50V for 12S), providing stable long-range power supply for the unmanned aerial vehicle.

　　2. The onboard power supply has multiple safety mechanisms such as input overvoltage and undervoltage protection, overload protection, and over temperature protection to ensure the safety and reliability of the power supply system.

　　3. Adopting analog circuit design, it has fast dynamic response and avoids interference with unmanned aerial vehicles and payloads.

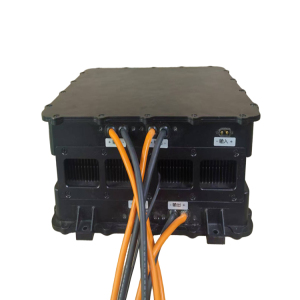

　　30W Drone Power Supply: Components, Operation, Maintenance & Efficiency

　　Introduction: Compact Power for Specialized Drone Applications

　　The 30W Drone Power Supply represents a specialized segment of UAV power solutions, engineered for applications where ultra-portability, minimal weight, and energy efficiency are paramount. Unlike high-power tethered systems, this compact unit is designed to power micro-drones, small surveillance UAVs, or specific onboard subsystems like powerful computing units or long-range communication modules. It serves as a critical component for extended missions where traditional battery power needs supplementation or stabilization. This guide provides a detailed overview of its internal components, standard operating procedures, recommended maintenance cycles, and the energy efficiency standards it adheres to, ensuring you can integrate and operate it with confidence.

　　Section 1: Comprehensive Parts List and Component Overview

　　A clear understanding of the system's components is essential for proper handling, setup, and troubleshooting. The 30W power supply is characterized by its minimalist and integrated design.

　　Core Power Unit and Enclosure

　　The system is built around a single, compact enclosure that houses all primary electronics. The core component is the DC-DC Converter PCB (Printed Circuit Board), which efficiently steps an input voltage (e.g., 12-24V DC) to the precise output voltage required by the drone or its subsystem (e.g., 5V, 12V). This board is populated with surface-mount technology (SMT) components, including a Power Inductor, Switching IC (Integrated Circuit), Filtering Capacitors (both ceramic and electrolytic), and Precision Resistors for voltage feedback. The entire assembly is protected by a Lightweight Aluminum or High-Strength Polymer Chassis, which also acts as a heat sink.

　　Input and Output Connectivity

　　The input of the unit is typically a DC Barrel Jack or a 2-Pin Aviation Connector, designed for a secure connection to an external power source like a battery pack. The output is delivered through a Standardized Connector, such as an XT30 or a JST-GH series, chosen for its balance of small size and current-carrying capacity. A Status Indicator LED is integrated into the design, providing immediate visual feedback on power status (e.g., green for normal operation, red for fault).

　　Included Accessories and Documentation

　　A standard package includes the 30W Power Supply Unit, a set of Input and Output Cables with pre-installed connectors, and zip ties for cable management. Comprehensive documentation is provided, including a User Manual with specifications and a Quick Start Guide for immediate deployment in the field.

　　Section 2: Standard Operating Procedure and Workflow

　　Correct operation is key to ensuring the safety of your drone and the longevity of the power supply. Follow this step-by-step workflow for optimal performance.

　　Phase 1: Pre-Operational Inspection and Connection

　　Before applying power, a thorough inspection is mandatory. Visually examine the unit for any physical damage such as cracks, dents, or exposed wiring. Check both the input and output connectors for bent pins, debris, or signs of corrosion. Ensure the cables are not frayed or damaged. Once confirmed, proceed with the connections in the following sequence:

　　Connect to Load: First, attach the output cable of the 30W power supply to the power input of your drone or subsystem. Ensure the connection is secure.

　　Connect to Source: Second, connect the input cable of the power supply to your external DC power source (e.g., a lithium battery pack).

　　This sequence prevents any voltage spikes from damaging the sensitive drone electronics.

　　Phase 2: Power-On and Functional Verification

　　After all connections are secure, power on the external DC source. Observe the status LED on the power supply unit. A solid green light typically indicates that the input voltage is within range and the unit is operating correctly. If the LED does not illuminate, flashes, or shows a red color, immediately disconnect the power and refer to the troubleshooting section of the manual. Once a normal status is confirmed, you may power on the drone or subsystem as per its standard procedure.

　　Phase 3: In-Operation Monitoring and Post-Use Shutdown

　　During the initial minutes of operation, monitor the temperature of the power supply unit by touch. It is normal for the unit to become warm, but it should not be too hot to touch. Monitor the drone's system telemetry for stable voltage readings. Upon mission completion, follow the reverse shutdown sequence:

　　Power down the drone or subsystem.

　　Disconnect the power supply from the external DC source.

　　Disconnect the power supply from the drone.

　　This systematic approach minimizes the risk of electrical faults.

　　Section 3: Recommended Maintenance Schedule and Procedures

　　While the 30W power supply is a solid-state device with no moving parts, periodic maintenance is crucial for ensuring long-term reliability, especially when used in demanding environments.

　　Routine Pre/Post-Flight Checks (Before/After Each Use)

　　This is a quick visual and functional inspection. Wipe the exterior with a dry cloth to remove dust. Check the connectors for secure fit and absence of debris. Verify that the status LED operates as expected during a brief power-on test.

　　Scheduled Quarterly Inspection (Every 3 Months or 150 Operating Hours)

　　For units in regular use, a more detailed inspection is recommended every quarter. Using a soft brush or compressed air, gently clean the ventilation slots on the enclosure to prevent dust buildup that can impair cooling. Carefully inspect all cables for the first signs of wear, such as insulation cracking or conductor strand breakage. Perform a voltage output test using a multimeter to ensure the output is within the specified tolerance (e.g., 5V ±0.25V).

　　Comprehensive Annual Service (Every 12 Months or 600 Operating Hours)

　　An annual service, potentially conducted by a qualified technician, is advised for mission-critical applications. This involves a thorough inspection of the internal PCB for any visible damage like swollen capacitors or burnt components, which would require unit replacement. The technician should also perform a load test to verify that the unit can maintain its rated voltage and efficiency under full 30W load.

　　Section 4: Energy Efficiency and Environmental Compliance Standards

　　The 30W power supply is designed not only for performance but also for environmental responsibility and energy conservation, adhering to globally recognized standards.

　　High-Efficiency Power Conversion Architecture

　　The unit utilizes advanced synchronous rectification technology in its DC-DC conversion process. This design minimizes energy loss that traditionally occurs in diode-based rectifiers. As a result, the power supply achieves a typical conversion efficiency of 90% or higher across a wide load range (20%-100%). This high efficiency means less energy is wasted as heat, allowing for a more compact design and reducing the drain on the external battery, thereby extending the overall system's operational time.

　　Low No-Load Power Consumption

　　A key feature of its efficient design is its minimal no-load power consumption. When connected to a power source but not actively supplying power to a drone (standby mode), the unit draws a very low current, often less than 10mA. This is critical for preserving the charge of the external battery during idle periods or when the system is on standby for rapid deployment.

　　Adherence to International Environmental Directives

　　The product is engineered and manufactured in compliance with the European Union's RoHS (Restriction of Hazardous Substances) Directive. This ensures that the unit contains minimal or no levels of hazardous materials like lead, mercury, and cadmium, making it safer for the environment at the end of its life cycle. Furthermore, while not always requiring formal certification at this low power level, the design philosophy follows the principles of ENERGY STAR for small network equipment, emphasizing reduced energy waste.

　　Conclusion: A Reliable and Efficient Power Foundation

　　The 30W Drone Power Supply is a meticulously engineered component that provides a clean, stable, and efficient power source for a niche yet critical range of drone applications. Its simple yet robust part list, clear operational workflow, straightforward maintenance needs, and high efficiency make it an indispensable tool for integrators and operators who prioritize size, weight, and power (SWaP) constraints without compromising on reliability or environmental standards.

　　For detailed technical specifications sheets and compatibility information, please visit the product page on our website or contact our support team.
