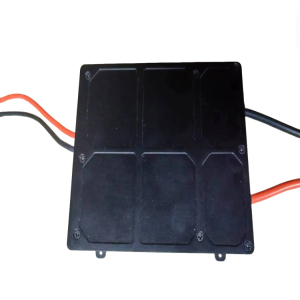

4000W Tethered Drone Power Supply

　　Power: 4000W

　　Input voltage range: 380-850Vdc

　　Output voltage range: optional 25V/50V/60V/75V

　　Airborne Power

　　1. The onboard power supply reduces the high voltage direct current of the Ground Mooring Box to a low voltage direct current stable output suitable for unmanned aerial vehicle power supply (such as 50V for 12S), providing stable long-range power supply for the unmanned aerial vehicle.

　　2. The onboard power supply has multiple safety mechanisms such as input overvoltage and undervoltage protection, overload protection, and over temperature protection to ensure the safety and reliability of the power supply system.

　　3. Adopting analog circuit design, it has fast dynamic response and avoids interference with unmanned aerial vehicles and payloads.

　　Introduction to Uninterrupted Aerial Power

　　Empower your drone for persistent flight with the HVP-4000, our flagship 4000W Tethered Drone Power Supply. Engineered for mission-critical applications in public safety, industrial inspection, and live broadcasting, this robust Ground Power Unit (GPU) delivers clean, stable, and reliable high-voltage power through a specialized tether. Achieve flight durations measured in hours, not minutes, overcoming the primary limitation of battery-powered UAVs.

　　This guide provides everything you need to know about the HVP-4000, from installation and quality control to warranty and maintenance, ensuring you maximize the operational potential and lifespan of your system.

　　Key Features & Technical Specifications

　　The HVP-4000 is designed with performance and durability as its core principles.

　　High-Efficiency Power Conversion: >92% efficiency, minimizing energy loss and heat generation.

　　Wide Voltage Input Range: Compatible with various generator and vehicle power sources (90V-264V AC).

　　Stable High-Voltage DC Output: Delivers consistent power, ensuring drone stability even in variable load conditions.

　　Advanced Thermal Management: Integrated cooling system with temperature monitoring and automatic fan control.

　　Comprehensive Protection Systems: Over-voltage, under-voltage, over-current, short-circuit, and over-temperature protection.

　　Ruggedized IP54 Enclosure: Protects against dust and water splashes for operation in challenging environments.

　　Remote Monitoring & Control: Optional Ethernet/RS485 interface for integration into command and control systems.

　　Installation & Operational Guide

　　Proper installation is crucial for the safe and effective operation of the HVP-4000. Follow these steps to set up your system.

　　Pre-Installation Checklist

　　Before powering on the unit, ensure you have:

　　A stable and level mounting surface (vehicle roof, tripod, or ground platform).

　　A compatible AC power source (generator, vehicle inverter, or grid power) that can sustain a 4000W+ load.

　　The certified high-voltage tether cable, inspected for any signs of damage.

　　Appropriate personal protective equipment (PPE) for high-voltage systems.Step-by-Step Installation Procedure

　　Secure the Power Supply: Mount the HVP-4000 unit securely using the provided brackets. Ensure it is firmly fastened to prevent movement during operation or transit.

　　Connect to AC Power Source:

　　Use a heavy-duty, outdoor-rated power cable to connect the HVP-4000's INPUT port to your AC source (e.g., a generator).

　　Crucial: Verify that the AC source voltage and frequency are within the specified input range (90-264V AC, 50/60 Hz).Deploy the Tether System:

　　Carefully unspool the tether cable, avoiding sharp bends or kinks. A minimum bend radius of 5cm is recommended.

　　Connect the tether's ground-side connector to the HIGH-VOLTAGE OUTPUT port on the HVP-4000 until it clicks and locks securely.

　　Route the tether away from the immediate launch area to avoid propeller interference.Connect to the Drone:

　　Power on your tethered drone.

　　Connect the airborne end of the tether to the drone's power input port. Ensure a secure and locked connection.Power On Sequence:

　　Turn on the AC power source (e.g., start the generator).

　　Switch the HVP-4000 to the "ON" position. The system will perform a brief self-check. The status indicator will show a steady green light upon successful initialization.Commence Operation: Once the HVP-4000 indicates a "Ready" status, you may proceed with the standard drone take-off procedures. The unit will now automatically supply power.Tether Management Best Practices

　　Always use a tether management system (TMS) or winch to manage cable tension and prevent slack from endangering the drone or people on the ground.

　　Never operate the system with a damaged or frayed tether cable.

　　Regularly inspect connectors for wear, corrosion, or bent pins.

　　Our Commitment: Rigorous Quality Control

　　Every HVP-4000 unit is a product of a meticulous, multi-stage quality control process designed to meet the highest industrial standards.

　　Design and Component Sourcing

　　We use only industrial-grade components from certified suppliers (e.g., TDK, Murata, Infineon).

　　All printed circuit boards (PCBs) are designed to IPC-A-610 Class 2/3 standards for reliability.In-Line Production Testing

　　Automated Optical Inspection (AOI): Checks for soldering defects and component placement accuracy on all PCBs.

　　In-Circuit Testing (ICT): Verifies the electrical performance of individual components and circuits

　　Ensuring Longevity: Inspection & Maintenance Schedule

　　Proactive inspection and maintenance are key to the long-term reliability of your power supply.

　　Daily/Pre-Flight Inspection

　　Visually inspect the unit's casing for cracks or physical damage.

　　Check all cable connectors (both input and output) for secure fit and absence of corrosion.

　　Inspect the entire length of the tether for cuts, abrasions, or kinks.

　　Ensure the cooling vents are clean and unobstructed.Monthly Maintenance

　　Clean the exterior with a soft, dry cloth. If necessary, use a cloth lightly dampened with fresh water. Do not use solvents.

　　Use compressed air to gently remove dust from the internal heatsink and fan blades (requires opening the case; only to be performed by qualified personnel).

　　Verify fan operation by listening for smooth, unobstructed spinning during operation.Annual Professional Servicing

　　We recommend sending the HVP-4000 unit back to an authorized service center for a comprehensive annual service. This includes:

　　Internal visual inspection for damaged components or capacitors.

　　Re-calibration of output voltage and current sensors.

　　Firmware update (if applicable).

　　Full functional re-test under load.

　　Warranty & Support Terms

　　We stand behind the quality and durability of the HVP-4000 with a comprehensive warranty.

　　Limited Warranty Summary

　　[Your Company Name] warrants to the original purchaser that the HVP-4000 Tethered Drone Power Supply will be free from defects in materials and workmanship for a period of twenty-four (24) months from the date of original retail purchase.

　　What is Covered:

　　Repair or replacement of any component that fails due to a manufacturing or material defect.

　　Labor required to perform covered repairs.What is Not Covered (Examples):

　　This warranty does not cover damage resulting from:

　　Misuse, abuse, neglect, or improper installation.

　　Accident, impact, or acts of God (e.g., lightning, flood).

　　Operation outside the specified environmental or electrical parameters.

　　Use of non-certified or third-party accessories, including tether cables.

　　Unauthorized modifications, repairs, or attempts to service the unit by personnel not certified by us.

　　Normal wear and tear of consumable parts (e.g., cooling fan).Warranty Claim Process

　　Contact Support: Notify our technical support team via email at support@yourcompany.com with a detailed description of the issue.

　　Provide Proof of Purchase: You will be required to provide a valid copy of your purchase receipt.

　　Troubleshooting: Our support team will guide you through basic troubleshooting steps to confirm the fault.

　　Return Authorization (RMA): If a warranty repair is confirmed, we will issue a Return Merchandise Authorization (RMA) number. Units returned without an RMA will not be accepted.

　　Shipment: Ship the unit to the address provided, prepaid and insured, including the RMA number clearly on the packaging.

　　Assessment & Resolution: Upon receipt, we will inspect the unit. If the issue is covered under warranty, we will repair or replace the unit at no cost and return it to you. If the issue is not covered, we will provide a quotation for repair.International B2B Support

　　For our global partners, we offer advanced replacement options and regional service center support. Please contact our sales team for specific service level agreements (SLAs) tailored to your organization's needs.

　　Conclusion: Power Your Mission with Confidence

　　The HVP-4000 4000W Tethered Drone Power Supply is more than just a component; it is the foundation for successful, long-endurance aerial operations. Built with uncompromising quality, backed by a robust warranty, and supported by clear operational guidelines, it is the reliable partner your team can count on.

　　Ready to elevate your drone capabilities? [Contact our expert team today] to discuss your requirements or [request a full technical datasheet].
