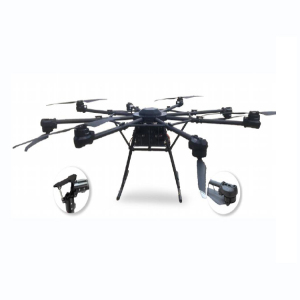

Model: LH200

　　Wheelbase: 3200mm

　　Payload capacity:100 KG

　　Tethered hovering height: 100 meters

　　Wind resistance: Wind force 7

　　Hanging time: ≥ 12 hours

　　Onboard power supply power: 50-70KW

　　Municipal power/generator: AC380V

　　Application scenarios: Fire rescue, tactical transportation, civilian logistics, etc.

　　Working principle of Tethered Drone

　　The Tethered Drone is connected to a ground power source through a cable, enabling long-term aerial hovering and mission execution.

　　The mooring box converts the single-phase 220V (or three-phase 380V) AC power provided by the generator (mains power) into high-voltage DC power DC400-1500V and outputs it to the mooring cable. After being stepped down by the onboard power supply, it is converted into a DC stabilized output suitable for Drone Power Supply (such as 50V for 12S), providing a long endurance power supply mode for the drone.

　　Application areas of Tethered Drone

　　The application of Tethered Drone is very extensive, including but not limited to emergency rescue (emergency lighting, emergency communication, high-rise firefighting), military (intelligence surveillance, electro-optical reconnaissance, radar electronic warfare), public safety (relay self-organizing network, environmental monitoring), and civilian (nighttime power repair, high-rise building cleaning/spraying). These application scenarios require drones to remain in a fixed position for a long time to complete specific tasks.

　　Introduction: Redefining Persistent Aerial Operations

　　The LH-200 Tethered Drone represents a significant advancement in unmanned aerial vehicle technology, specifically engineered for extended-duration missions where continuous aerial presence is mission-critical. This sophisticated tethered system combines robust aircraft design with intelligent power management and advanced stabilization technologies to deliver unparalleled operational endurance. Designed for professional applications in security, surveillance, telecommunications, and industrial inspection, the LH-200 establishes new benchmarks for reliability and performance in the tethered UAV market. This comprehensive guide provides detailed specifications, complete product overview, international certification credentials, and essential storage protocols to help operators maximize the system's capabilities while ensuring long-term reliability and compliance with global operational standards.

　　Section 1: Comprehensive Technical Specifications and Models

　　The LH-200 system incorporates precisely engineered components designed to work in harmony for optimal performance across various operational scenarios.

　　Aircraft Platform Specifications

　　The LH-200 airframe features a hexacopter configuration with a 1200mm diameter, constructed from carbon fiber composites and aerospace-grade aluminum alloys. The airframe weight is 8.5kg without payload, with a maximum takeoff weight of 15kg. It incorporates six brushless DC motors rated at 2.5kW each, providing redundant lifting capability. The propulsion system delivers a maximum thrust-to-weight ratio of 2.8:1, ensuring stable operation in wind speeds up to 15 m/s. The integrated flight controller utilizes triple-redundant IMUs and dual GNSS receivers with RTK capability, providing positioning accuracy of ±1cm horizontally and ±2cm vertically under optimal conditions. The aircraft operates within a temperature range of -20°C to 50°C and can withstand precipitation up to 10mm/hour.

　　Power and Tether System Specifications

　　The ground-based power supply unit delivers 6000W continuous power with 94% conversion efficiency, operating from input voltages of 100-240V AC or optional 48V DC. The specialized tether cable measures 200 meters in standard configuration, with optional lengths of 100m or 300m available. The tether incorporates 10AWG power conductors and dual fiber optic strands for data transmission, with a breaking strength of 200kg and overall diameter of 6.2mm. The power system maintains stable voltage output with less than 3% variance across the entire tether length, ensuring consistent performance regardless of altitude. The ground station includes automatic cable management with tension control and anti-tangling mechanisms, housed in a weatherproof enclosure rated IP54.

　　Payload and Communication Capabilities

　　The LH-200 supports multiple payload configurations through its standardized quick-release interface. The primary configuration includes a tri-sensor gimbal with 30x optical zoom visible light camera (4K resolution), thermal imaging camera (640x512 resolution, 25mm lens), and laser rangefinder with 1000m maximum range. The communication system utilizes the tethered fiber optic connection for primary data link, providing latency below 10ms and bandwidth up to 100Mbps. A backup wireless link operates on 2.4GHz and 5.8GHz frequencies with automatic failover capability. The system supports real-time transmission of multiple HD video streams simultaneously while maintaining flight telemetry and control data.

　　Section 2: Detailed Product Overview and System Architecture

　　The LH-200 integrates sophisticated subsystems into a cohesive operational platform designed for reliability and ease of operation.

　　Aircraft Design and Construction

　　The airframe employs a modular design philosophy, with quick-disconnect arms and easily accessible component bays to facilitate maintenance and repair. The vibration isolation system uses proprietary dampening materials to protect sensitive payloads and avionics from harmonic vibrations. Weather resistance is achieved through conformal coating of electronic components, IP53 rating for the airframe, and hydrophobic coatings on critical surfaces. The landing gear features shock-absorbing construction with attitude-adjusting capability for operations on uneven terrain. The visual navigation system includes obstacle avoidance sensors with 120° field of view and 30m detection range, supplementing the primary flight control systems.

　　Ground Station and Control Systems

　　The ground station incorporates a 15-inch sunlight-readable display with integrated control computer running the proprietary flight management software. The interface provides intuitive control of all aircraft and payload functions while displaying comprehensive system status information. The station includes dual hot-swappable batteries providing up to 2 hours of backup operation, automatic cable deployment and retrieval systems, and environmental monitoring sensors. The control software enables pre-flight planning, automated takeoff and landing, altitude hold, position lock, and emergency procedures. Users can define automated patrol routes, set up waypoint missions, and configure response protocols for various operational scenarios.

　　Operational Performance Characteristics

　　The LH-200 achieves continuous flight endurance exceeding 24 hours in standard configuration, limited only by ground power availability and maintenance requirements. The system maintains operational altitude of 200 meters with position accuracy within ±2 meters under normal wind conditions. The stabilization system provides gimbal stabilization accuracy of ±0.01° regardless of aircraft movement or wind disturbances. Deployment time from transport to operational readiness is less than 10 minutes for a trained crew, with similarly rapid recovery and stowage. The system is designed for single-operator control with optional dual-operator configuration for complex payload operations.

　　Section 3: International Product Certifications and Compliance

　　The LH-200 system has undergone rigorous testing and certification processes to ensure compliance with international standards for safety, quality, and operational performance.

　　Aviation and Safety Certifications

　　The LH-200 holds CE certification demonstrating compliance with European health, safety, and environmental protection standards for tethered UAV systems. It is compliant with FAA regulations for tethered drone operations under specific operational guidelines and has obtained relevant national aviation authority certifications in multiple markets. The system meets IEC 62368-1 safety standards for audio/video, information and communication technology equipment, and incorporates design elements compliant with RTCA DO-160G environmental conditions and test procedures for airborne equipment. The tether system and failure mode analysis demonstrate compliance with critical safety requirements for operations near populated areas.

　　Electromagnetic and Environmental Compliance

　　The complete system holds FCC certification for electromagnetic compatibility, ensuring it does not cause harmful interference and operates as intended in its anticipated electromagnetic environment. It complies with the European EMC Directive 2014/30/EU and meets military-standard MIL-STD-461G requirements for electromagnetic interference characteristics. Environmental testing has verified operation within specified parameters after exposure to temperature extremes, humidity, vibration, and shock per IEC 60068-2 standards. The system's materials and construction comply with RoHS directives restricting hazardous substances and REACH regulations concerning chemical substances.

　　Quality Management and Manufacturing Standards

　　Manufacturing occurs in facilities holding ISO 9001:2015 quality management system certification and AS9100D quality standards for aerospace applications. Each production unit undergoes comprehensive testing including flight performance validation, power system stress testing, and environmental sealing verification. Critical components are sourced from suppliers with appropriate industry certifications, and the supply chain management system ensures traceability of all major components. The quality assurance process includes burn-in testing of electronic systems, structural load testing of airframe components, and final integration testing of complete systems before shipment.

　　Section 4: Optimal Storage Conditions and Transportation

　　Proper storage and handling procedures are essential for maintaining system performance and extending service life during periods of non-operation.

　　Short-Term Storage Requirements

　　For storage periods up to 30 days, maintain the system in a controlled environment with temperature between 15°C and 25°C and relative humidity between 40% and 60%. The aircraft should be stored with the tether properly wound on its reel and all protective covers installed. Batteries should be charged to approximately 50% capacity for storage and verified weekly for voltage maintenance. The ground station should be powered down completely with all connectors protected by their environmental covers. The system should be stored in its original transportation cases or in a clean, dust-free environment away from direct sunlight. Monthly during storage, perform a visual inspection of all components and exercise moving parts through their full range of motion.

　　Long-Term Preservation Protocols

　　For storage exceeding 30 days, implement comprehensive preservation procedures beginning with thorough cleaning of all components using approved methods and materials. Apply protective coatings to exposed metal surfaces and connectors to prevent corrosion. Remove batteries and store separately in a fire-resistant container at appropriate charge levels. Document the preservation date and all procedures performed for future reference. Every three months during extended storage, perform a complete system inspection and operational check without full activation. Maintain detailed storage records including environmental conditions, inspection results, and any maintenance actions performed during the storage period.

　　Transportation and Handling Guidelines

　　During transportation, secure all components in their designated foam-fitted cases with proper restraint to prevent movement. Clearly mark cases with appropriate handling labels indicating orientation, fragility, and environmental limitations. For vehicle transportation, secure cases to prevent shifting and protect from direct sunlight or extreme temperatures. For air shipment, comply with IATA regulations for lithium batteries and electronic equipment. During loading and unloading, use appropriate equipment and techniques to prevent impact damage. Maintain transportation records including handling conditions and duration for traceability and warranty purposes. Upon receipt after transportation, conduct a thorough inspection and complete system functional test before returning to operational service.

　　Conclusion: The Professional Choice for Persistent Aerial Operations

　　The LH-200 Tethered Drone System represents a comprehensive solution for organizations requiring reliable, extended-duration aerial capabilities. With its robust technical specifications, sophisticated system architecture, international certifications, and clear storage protocols, the LH-200 delivers professional-grade performance for the most demanding operational environments. The system's design emphasizes reliability, ease of operation, and compliance with global standards, making it suitable for deployment across diverse geographic and regulatory environments.

　　By understanding the complete ecosystem surrounding the LH-200—from its detailed specifications and features to its certification credentials and storage requirements—operators can make informed decisions about system deployment and maintenance. This knowledge ensures that organizations can maximize their investment while maintaining operational readiness and regulatory compliance throughout the system's service life.

　　For specific application requirements or detailed technical consultation, contact our engineering team to discuss how the LH-200 Tethered Drone System can be optimized for your unique operational needs and environment.
