Electric vertical takeoff and landing composite wing unmanned aerial vehicle, commonly known as eVTOL Fixed Wing Hybrid or VTOL Composite Wing unmanned aerial vehicle, is an advanced flight platform that combines the advantages of both multi rotor unmanned aerial vehicles and fixed wing unmanned aerial vehicles.

　　Electric: means it is powered by batteries, clean, quiet, and easy to maintain.

　　Vertical takeoff and landing: This means it can take off and land vertically like a multi rotor drone without relying on a runway, with extremely low requirements for takeoff and landing sites.

　　Composite wing: This is the key. It is not simply a combination of rotors and fixed wings, but rather a sophisticated design that uses vertical lift systems (such as rotors) during takeoff and landing, and relies mainly on the aerodynamic lift of fixed wings for efficient cruising during level flight.

　　Application scenarios

　　1. Surveying and mapping:

　　Conduct large-scale terrain mapping, earthwork surveying, and 3D urban modeling. Long endurance and high speed enable it to quickly complete large-scale operations.

　　2. Power and pipeline inspection:

　　Automated inspection of long-distance transmission lines and oil/gas pipelines. Vertical takeoff and landing facilitate hovering inspection at specific towers or nodes.

　　3. Logistics transportation:

　　It is one of the ideal platforms for air logistics, used for the distribution of emergency medical supplies over medium to long distances and the transportation of goods between mountainous areas or islands.

　　4. Security and surveillance:

　　Used for wide area monitoring of border patrols, large industrial parks, and emergency command sites, providing a long-term aerial perspective.

　　5. Agriculture and Environmental Protection:

　　Conduct large-scale agricultural and forestry surveys, monitor pests and diseases, track wildlife, and monitor the environment.

　　6. Military and Defense:

　　Used for tasks such as tactical reconnaissance, intelligence gathering, communication relay, and area denial.

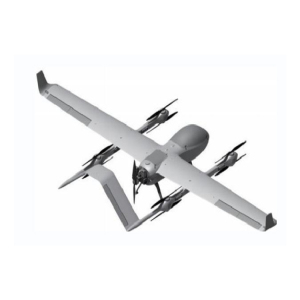

　　VF-180P Electric Vertical Takeoff And Landing Fixed-wing UAV: A Comprehensive Guide

　　Introduction to the VF-180P eVTOL Fixed-Wing UAV

　　The VF-180P represents a significant leap forward in unmanned aerial vehicle technology, masterfully combining the vertical takeoff and landing (VTOL) capabilities of a multirotor with the efficient, high-speed cruise performance of a fixed-wing aircraft. This hybrid design eliminates the need for runways or launch equipment, offering unparalleled operational flexibility. Engineered for professional applications in sectors such as surveying, mapping, agriculture, infrastructure inspection, and logistics, the VF-180P is built to deliver reliability, endurance, and superior data acquisition in a single, robust platform. This document provides a detailed overview of its structural design, quality assurance, shipping guidelines, and warranty policy, serving as an essential resource for potential B2B partners and integrators.

　　Structural Design and Technical Specifications

　　The airframe of the VF-180P is a product of advanced computational fluid dynamics analysis and rigorous material science. Its construction is centered on achieving the optimal balance between structural integrity, weight reduction, and aerodynamic efficiency.

　　Fuselage and Airframe Construction

　　The primary structure is fabricated from high-strength, lightweight carbon fiber composites. This material offers an exceptional strength-to-weight ratio, ensuring the airframe can withstand the stresses of VTOL transitions and long-distance cruise while protecting the sensitive internal components. The fuselage is designed with a streamlined profile to minimize drag during forward flight, directly contributing to extended endurance.

　　Wing Configuration and Aerodynamics

　　The VF-180P features a high-aspect-ratio fixed wing. This design is critical for generating sufficient lift with minimal energy expenditure, which is the key to its long flight times. The wings are modular, allowing for easy assembly and disassembly without specialized tools, greatly enhancing portability and simplifying logistics for field operations.

　　Propulsion System

　　The propulsion system is a dual-mode setup. For vertical takeoff, landing, and hover, it relies on multiple electric motors positioned on the VTOL arms. These motors are precisely controlled by the flight controller to ensure stable ascent and descent. For efficient forward flight, a single, powerful pusher propeller at the rear of the fuselage takes over. This configuration isolates the cruise propeller from the ground during takeoff and landing, preventing damage and ensuring clean airflow.

　　Avionics and Payload Bay

　　At the core of the VF-180P is a sophisticated avionics suite featuring a redundant flight control system, an inertial measurement unit (IMU), GPS compass modules, and various sensors. This system manages the complex transition between VTOL and fixed-wing flight modes automatically and seamlessly. The payload bay is strategically located near the center of gravity and is environmentally sealed. It supports a wide range of payloads, including high-resolution RGB cameras, multispectral sensors, thermal imagers, and LiDAR systems, with standardized interfaces for power and data communication.

　　Key Technical Specifications:

　　Wingspan: 1800 mm

　　Maximum Takeoff Weight: 6.5 kg

　　Payload Capacity: 1.2 kg

　　Endurance: Up to 120 minutes (depending on payload and conditions)

　　Cruise Speed: 15-25 m/s

　　Maximum Service Ceiling: 5000 meters above sea level

　　Wind Resistance: Operable in winds up to 12 m/s

　　Takeoff and Landing: Fully automatic vertical takeoff and landing

　　Propulsion: All-electric

　　Data Link Range: Up to 30 km (dependent on local regulations and environment)

　　Quality Inspection and Assurance Report

　　Every VF-180P unit undergoes a stringent multi-stage quality inspection process before leaving our facility. Our commitment to quality is embedded in every step of production, from component sourcing to final functional testing.

　　Incoming Component Inspection

　　All incoming components, from carbon fiber sheets to electronic chips, are subjected to rigorous verification against our strict technical specifications. We partner with ISO-certified suppliers and perform batch testing on critical items like batteries, motors, and flight controllers to ensure consistency and performance.

　　In-Process Production Checks

　　During assembly, each stage is monitored and verified. This includes checks for the structural integrity of the carbon fiber layup, the precision of the wing-fuselage alignment, and the correct torque on all fasteners. Electrical systems are inspected for proper wiring, insulation, and connector integrity before power is ever applied.

　　Final Functional and Performance Testing

　　Each fully assembled VF-180P must pass a comprehensive final test protocol. This includes:

　　Ground Station Communication Test: Verifying stable and reliable data telemetry and command link.

　　Power System Calibration: Testing all VTOL and cruise motors for proper thrust output and synchronization.

　　Sensor and Avionics Functional Test: Ensuring the IMU, GPS, compass, and other sensors are calibrated and functioning correctly.

　　Payload Integration Test: Verifying power delivery and data communication with the intended payload.

　　Vibration and Stress Test: A subset of units from each production batch undergoes vibration testing to simulate flight stresses and ensure there are no latent mechanical failures.

　　Hover Test in Controlled Environment: A final real-world hover test is conducted in our secure facility to validate the aircraft's stability and the automatic transition logic of the flight control system.

　　This meticulous process ensures that every customer receives a UAV that meets our high standards for performance, reliability, and safety.

　　Transportation and Handling Guidelines

　　Proper transportation and handling are crucial to maintaining the VF-180P's condition upon arrival. Adherence to these guidelines will prevent transit-related damage.

　　Packaging Overview

　　The VF-180P is shipped in a custom-designed, high-strength hard case with customized foam inserts. This case is engineered to withstand the rigors of logistics handling, providing superior shock absorption and crush resistance. The foam interior is precision-cut to cradle each component—the fuselage, wings, ground station, batteries, and accessories—individually, preventing any movement during transit.

　　Pre-Transport Preparation

　　Battery Discharge and Safety: All lithium polymer batteries are shipped at a safe, storage-level charge state (typically between 30% and 50%) as per international air transport regulations. Batteries are securely packed within the case to prevent short circuits.

　　Component Securement: Before closing the case, ensure all components are seated firmly in their designated foam slots.

　　Documentation: The shipping box will contain all necessary documentation, including packing lists, commercial invoices, and material safety data sheets for batteries, to facilitate smooth customs clearance.

　　Handling and Storage Recommendations

　　Lifting: Always lift the transport case using the handles. Do not lift by the latches or the case itself.

　　Stacking: Do not stack heavy items on top of the transport case.

　　Environmental Conditions: Store and transport the case in a cool, dry environment. Avoid prolonged exposure to direct sunlight, extreme heat, or sub-zero temperatures, as this can damage electronic components and batteries.

　　Post-Transport Inspection: Upon receipt, carefully inspect the outer packaging for signs of significant impact. Open the case and visually inspect all components for any damage that may have occurred during shipping.

　　Warranty and Support Policy

　　We stand behind the quality and durability of the VF-180P with a clear and comprehensive warranty policy, designed to provide our customers with confidence and peace of mind.

　　Standard Warranty Coverage

　　The VF-180P UAV is covered by a standard 12-month limited warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use and following the provided operational guidelines. Coverage includes the repair or replacement, at our discretion, of faulty components such as the airframe structure, factory-installed motors, electronic speed controllers (ESCs), and the flight controller.

　　Warranty Limitations and Exclusions

　　The warranty does not cover damage resulting from:

　　Accidents, misuse, abuse, or neglect.

　　Improper maintenance or modifications not performed or authorized by our technical team.

　　Crash incidents, regardless of cause.

　　Water immersion or corrosion.

　　Normal wear and tear, including minor scratches on the airframe.

　　Consumable parts such as propellers.

　　Batteries, which are covered by a separate 6-month warranty against manufacturing defects.

　　Support and Service Process

　　Technical Support: Customers have access to our pre-sales and after-sales technical support team via email and dedicated support channels for operational and troubleshooting inquiries.

　　Warranty Service: To initiate a warranty claim, please contact our support team with your purchase details and a detailed description of the issue. Our engineers will guide you through a diagnostic process. If a warranty service is confirmed, a Return Material Authorization (RMA) number will be issued. The product must be returned to our designated service center in its original packaging, with the RMA number clearly marked on the outside.

　　Conclusion

　　The VF-180P Electric VTOL Fixed-Wing UAV is a sophisticated tool engineered for demanding professional applications. Its robust carbon fiber construction, intelligent hybrid design, and rigorous quality control make it a reliable partner for your aerial missions. By understanding its structure, adhering to transportation best practices, and being familiar with the warranty policy, you can maximize the operational life and effectiveness of your VF-180P. We are committed to supporting our global clients with reliable products and professional service. For further technical specifications or to discuss your specific application needs, please do not hesitate to contact our sales team.
