Electric vertical takeoff and landing composite wing unmanned aerial vehicle, commonly known as eVTOL Fixed Wing Hybrid or VTOL Composite Wing unmanned aerial vehicle, is an advanced flight platform that combines the advantages of both multi rotor unmanned aerial vehicles and fixed wing unmanned aerial vehicles.

　　Electric: means it is powered by batteries, clean, quiet, and easy to maintain.

　　Vertical takeoff and landing: This means it can take off and land vertically like a multi rotor drone without relying on a runway, with extremely low requirements for takeoff and landing sites.

　　Composite wing: This is the key. It is not simply a combination of rotors and fixed wings, but rather a sophisticated design that uses vertical lift systems (such as rotors) during takeoff and landing, and relies mainly on the aerodynamic lift of fixed wings for efficient cruising during level flight.

　　Application scenarios

　　1. Surveying and mapping:

　　Conduct large-scale terrain mapping, earthwork surveying, and 3D urban modeling. Long endurance and high speed enable it to quickly complete large-scale operations.

　　2. Power and pipeline inspection:

　　Automated inspection of long-distance transmission lines and oil/gas pipelines. Vertical takeoff and landing facilitate hovering inspection at specific towers or nodes.

　　3. Logistics transportation:

　　It is one of the ideal platforms for air logistics, used for the distribution of emergency medical supplies over medium to long distances and the transportation of goods between mountainous areas or islands.

　　4. Security and surveillance:

　　Used for wide area monitoring of border patrols, large industrial parks, and emergency command sites, providing a long-term aerial perspective.

　　5. Agriculture and Environmental Protection:

　　Conduct large-scale agricultural and forestry surveys, monitor pests and diseases, track wildlife, and monitor the environment.

　　6. Military and Defense:

　　Used for tasks such as tactical reconnaissance, intelligence gathering, communication relay, and area denial.

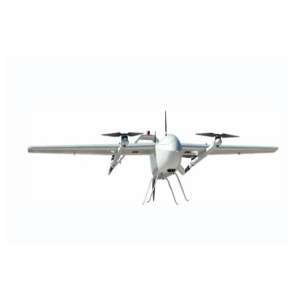

　　VF20E Electric Vertical Takeoff and Landing (eVTOL) Fixed-Wing UAV: Operational Manual, Design Philosophy, and Quality Assurance

　　The VF20E represents the next evolution in hybrid unmanned aerial systems, engineered to bridge the gap between versatile multirotor operations and long-endurance fixed-wing flight. This document provides a thorough overview of the VF20E, detailing its innovative design philosophy, step-by-step operational procedures, and the rigorous quality control standards that ensure its reliability and performance in the most demanding professional environments.

　　Design Philosophy and Engineering Innovation

　　The core design principle behind the VF20E is "Efficiency without Compromise." Every aspect of its engineering is focused on delivering a robust, user-friendly platform that maximizes flight time, payload flexibility, and operational simplicity.

　　1. The Hybrid VTOL Advantage:

　　The VF20E eliminates the fundamental limitations of both multirotors and traditional fixed-wings.

　　Multirotor Capability: Takes off and lands vertically in confined spaces, requiring no runway, catapult, or recovery net. This is ideal for operations in complex terrain, from dense forests to urban environments and ship decks.

　　Fixed-Wing Efficiency: Once airborne, the aircraft transitions to efficient forward flight. The high-aspect-ratio wing generates lift with minimal energy draw from the battery, enabling flight durations of up to 90 minutes and covering large areas efficiently for surveying, mapping, and inspection missions.

　　2. Robust and Lightweight Airframe Construction:

　　The primary structure is manufactured from custom-laid carbon fiber composites and aerospace-grade aluminum alloys. This combination was selected through extensive Finite Element Analysis (FEA) to achieve an optimal balance:

　　Carbon Fiber: Used for the wings, fuselage, and tail sections to provide exceptional strength-to-weight and stiffness-to-weight ratios, resisting torsion and bending during high-speed cruise and turbulent conditions.

　　Aerospace Aluminum: Employed for critical load-bearing points, such as the VTOL arm hinges and payload mounts, offering superior durability and impact resistance.

　　3. Intelligent Redundant Systems:

　　Safety and reliability are paramount. The VF20E is equipped with a redundant flight control system.

　　Dual IMUs and GPS: The aircraft features two separate Inertial Measurement Units (IMUs) and two GPS receivers. In the unlikely event of a primary sensor failure, the system seamlessly switches to the secondary unit, allowing for a safe return and landing.

　　Fail-Safe Communication: The data link includes a robust, low-latency control link and an independent, long-range telemetry link. If the primary control signal is lost, the UAV will automatically execute a pre-programmed lost-link procedure, typically returning to its launch point and landing autonomously.

　　4. Streamlined Payload Integration:

　　The VF20E is designed as a versatile data acquisition platform. The payload bay is strategically located at the center of gravity and features:

　　Standardized Power and Data Ports: Providing stable power and a high-speed communication bus (e.g., CAN, UART) for a wide range of payloads, including RGB cameras, multispectral sensors, thermal imagers, LiDAR scanners, and communication relays.

　　Vibration Dampening: A custom isolation mount minimizes high-frequency vibrations from the propulsion system, ensuring crystal-clear imagery and data accuracy from sensitive sensors.

　　Environmental Sealing: The bay is gasketed to protect the payload from dust and moisture, ensuring reliable operation in adverse weather conditions.

　　Comprehensive Operational Manual

　　Following these procedures is essential for safe and successful VF20E operations.

　　Pre-Flight Checklist

　　Site Assessment: Choose a clear, open area with a minimum radius of 10 meters free from obstacles, people, and power lines. Check local weather conditions, ensuring wind speeds are below 12 m/s and visibility is good.

　　Equipment Inspection:

　　Airframe: Visually inspect the entire structure for any signs of damage, cracks, or loose components. Pay close attention to the wings, VTOL arms, and propellers.

　　Propulsion System: Ensure all eight propellers (four for VTOL, one for pusher) are securely fastened and undamaged. Manually spin the motors to check for obstructions or unusual noises.

　　Power System: Insert a fully charged battery, ensuring the connector is fully seated. Verify that the battery voltage, as shown in your Ground Control Station (GCS) software, is within normal operating range.

　　Sensors: Check that the GPS/Compass module is secure and unobstructed.

　　Payload: Secure the payload and verify its operation and connection to the GCS.

　　Ground Control Station (GCS) Setup:

　　Power on the ground control station (tablet/laptop) and the radio link transceiver.

　　Launch the flight control application and establish a connection with the VF20E.

　　Wait for the system to acquire a strong GPS signal (typically >10 satellites). The application will indicate when the aircraft is ready for flight.

　　Flight Mission Execution

　　Automatic Takeoff:

　　In the GCS, select the "Takeoff" command.

　　The pilot will be prompted to confirm. The pilot must hold a dedicated safety switch on the remote controller while confirming the command.

　　The VF20E will automatically start its motors, ascend vertically to a pre-set safe altitude (e.g., 25 meters), and hover steadily.

　　In-Flight Transition:

　　Once stable in hover, the transition to fixed-wing flight is initiated automatically or via a single GCS command.

　　The aircraft will pitch forward, using its VTOL motors to gain airspeed. As lift is generated by the wings, the VTOL motors will gradually reduce power and shut down, folding their propellers to minimize drag.

　　The rear pusher propeller becomes the primary source of thrust for efficient forward flight.

　　Mission Execution:

　　The aircraft can now be flown manually via the remote controller or follow a pre-programmed autonomous flight plan uploaded to the GCS. The autonomous mode is recommended for precise data collection tasks like photogrammetry or linear inspections.

　　Return and Automatic Landing:

　　Initiate the "Return to Launch" (RTL) command from the GCS or RC transmitter.

　　The VF20E will automatically navigate back to the home point.

　　Upon arrival, it will slow down, transition back to multirotor mode by restarting its VTOL motors, and descend vertically for a precise, soft landing.

　　Post-Flight Procedures

　　Power Down: After landing, first disarm the motors via the GCS, then power off the aircraft, and finally power down the GCS and remote controller.

　　Data Retrieval: Safely remove the payload and download the acquired data.

　　Battery Care: Remove the battery from the aircraft. If the batteries will not be reused within 24 hours, discharge or charge them to their recommended storage voltage (approx. 3.8V per cell).

　　Cleaning and Storage: Gently clean the airframe with a soft, dry cloth. Store the UAV and its components in the provided hard-case in a cool, dry environment.

　　Quality Inspection Report and Assurance Standards

　　Every VF20E unit undergoes a rigorous, multi-stage quality inspection process to guarantee it meets our exacting performance and reliability standards before delivery.

　　Incoming Component Verification

　　All raw materials and sub-assemblies are sourced from certified suppliers and subjected to stringent incoming checks.

　　Carbon Fiber Parts: inspected for delamination, porosity, and dimensional accuracy.

　　Electronic Components: including flight controllers, ESCs, and motors, are batch-tested for functionality and performance.

　　Batteries: Each battery pack is cycled and tested for capacity, internal resistance, and balance.

　　In-Process Production Checks

　　During assembly, each stage is meticulously verified.

　　Structural Assembly: Verification of hinge alignment, wing mounting integrity, and fastener torque.

　　Electrical System Integration: Inspection of wiring harnesses for correct routing, connector engagement, and absence of short circuits.

　　Propulsion System Integration: Calibration of each motor and ESC pair to ensure smooth operation and synchronized thrust output.

　　Final Product Validation and Testing

　　Each fully assembled VF20E must pass a comprehensive final validation protocol.

　　Functional System Tests:

　　Full System Power-On: Verifying communication between all avionics components.

　　Redundancy Switch-Over Test: Artificially failing the primary IMU/GPS to confirm seamless transition to the secondary system.

　　Servo and Motor Function Test: Commanding all control surfaces and motors to verify full range of motion and correct response.

　　Payload Communication Test: Verifying power delivery and data exchange with the payload bay.

　　Environmental and Performance Tests (Performed on batch samples):

　　Vibration Testing: The aircraft is subjected to vibration profiles simulating flight conditions to identify any potential mechanical resonances or loose components.

　　Ground Hover Test: Conducted in a secure netted enclosure, this test validates the stability of the VTOL flight mode, the accuracy of the control algorithms, and the smoothness of the transition sequence.

　　Adherence to Rigorous Detection Standards

　　The manufacturing and testing of the VF20E are guided by a framework of international and internal standards to ensure consistency, safety, and quality.

　　Key Standards and Protocols:

　　ISO 9001:2015 Quality Management Systems: Our entire production process is certified to this international standard, ensuring a systematic approach to quality control and continuous improvement.

　　DO-160G Environmental Conditions and Test Procedures for Airborne Equipment: While for commercial aviation, this standard inspires our rigorous environmental testing, including for temperature, humidity, and vibration.

　　RTCA SC-228 (Guidance for UAS): We reference safety and performance guidelines from leading aviation authorities to inform our design and system redundancy strategies.

　　Internal Performance Benchmarks: We enforce performance thresholds that often exceed typical industry norms, such as a minimum flight time under standard load, a maximum permissible vibration level for the payload, and a mandatory GPS signal acquisition time.

　　Data-Driven Quality Control:

　　Every test generates data. Thrust curves for each motor, vibration spectra, and GPS accuracy metrics are logged against the aircraft's serial number. This data is not only used for pass/fail decisions but also for statistical process control, allowing us to continuously refine our manufacturing techniques and preemptively identify potential areas for improvement.

　　Conclusion: The Benchmark in Professional eVTOL UAVs

　　The VF20E is more than just a UAV; it is a meticulously engineered solution built upon a foundation of innovative design, user-centric operation, and uncompromising quality control. By choosing the VF20E, you are investing in a platform that delivers proven reliability, exceptional endurance, and the versatility to tackle the most challenging aerial data collection missions. Our commitment to these principles ensures that the VF20E will be a dependable asset for your operations, day in and day out.
