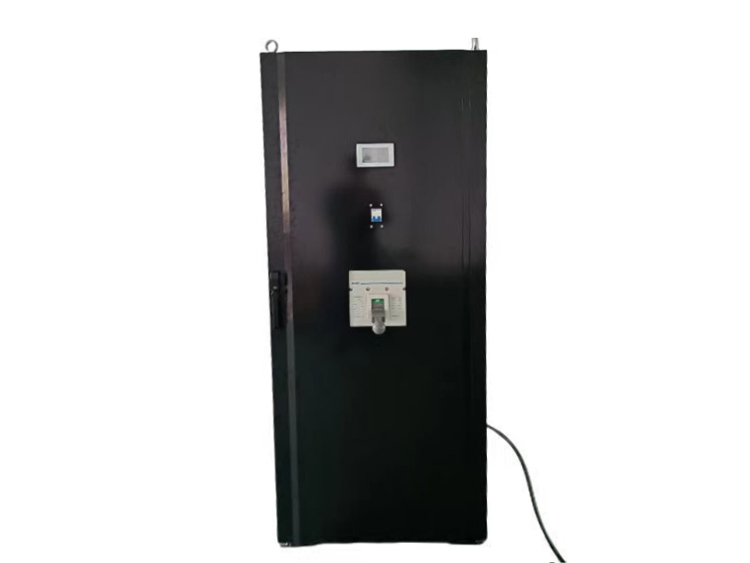

480KW Tethered Drone Power System

　　Input voltage range: 260Vac~530Vac 45Hz~65Hz

　　Output voltage range: 3000-1000VDC

　　Power: 480KW (customizable for higher power)

　　Tethered Drone Power System：

　　1. Advanced power conversion technology, with a typical efficiency of up to 96%, ensures stable and efficient power supply for drones during long-term flight.

　　2. The mooring box is equipped with intelligent automatic retraction and cable arrangement, and can also switch to manual mode by rotating the reel to retract and release cables. Configuring a 4.3-inch color screen with touch control is more user-friendly and convenient, with functions such as displaying box temperature, wire length, current and voltage, electricity consumption, torque adjustment, switching between Chinese and English, recording abnormal information, and a forced collection button. Relevant abnormalities will be promptly alerted through auxiliary reminders such as sound and light.

　　480KW Tethered Drone Power System: Comprehensive Operational Guide

　　Introduction to High-Power Tethered Systems

　　The 480KW tethered drone power system represents the pinnacle of high-capacity aerial power technology, engineered to support the most demanding commercial and industrial drone operations. This industrial-grade power solution enables continuous flight operations for heavy-lift drones and specialized aerial platforms, facilitating extended missions in sectors including telecommunications, broadcasting, emergency response, and scientific research. Unlike conventional drone power systems limited to smaller applications, the 480KW system delivers unprecedented power capacity while maintaining the reliability and safety standards required for critical operations.

　　This comprehensive guide provides detailed information about transportation requirements, operational procedures, safety protocols, and maintenance practices specifically designed for this high-capacity power system. Following these guidelines ensures optimal performance, extended equipment lifespan, and most importantly, operational safety for personnel and equipment.

　　Transportation and Logistics Requirements

　　Pre-Transport Preparation

　　The 480KW system requires meticulous preparation before any transportation activity. Begin by performing a complete system shutdown following the manufacturer's specified sequence, allowing adequate cooling time before disconnection. Document the system's current configuration, including all switch positions and parameter settings, to facilitate proper reassembly. Secure all internal components using the provided locking mechanisms to prevent movement during transit. For international shipments, complete all necessary customs documentation including detailed equipment descriptions, harmonized system codes, and value declarations.

　　Environmental preparation includes verifying that the transport vehicle meets the specific requirements for weight distribution and securing points. The system's main power unit weighs approximately 850kg and requires appropriate lifting equipment for loading and unloading. Ensure the transport route has been surveyed for clearance heights, bridge weight limits, and turning radius requirements. All personnel involved in transportation must have received proper training in heavy equipment handling and securing procedures.

　　Packaging and Securing Specifications

　　The 480KW system ships in specialized industrial packaging designed to withstand the rigors of transportation. The main power unit is secured within a custom-engineered crate featuring shock-absorbent mounting points and environmental monitoring systems. All cable connections and interface panels are protected with impact-resistant covers and environmental seals to prevent contamination during transit.

　　Securing the system within the transport vehicle requires specific procedures:

　　Use heavy-duty ratchet straps with minimum 2,500kg working load limit

　　Position straps only at designated attachment points marked on the shipping crate

　　Utilize edge protectors to prevent strap damage against sharp crate edges

　　Employ load bars or braces to prevent lateral movement during transportation

　　Install vibration monitoring equipment to track G-forces during transit

　　Special Transport Considerations

　　Transporting the 480KW system involves several special considerations due to its size, weight, and technical nature. Route planning must account for the shipment's dimensions: main crate measures 2.4m × 1.8m × 1.6m with a total shipment weight of approximately 1,200kg including packaging and accessories. Special permits may be required for oversized shipments, particularly for road transport.

　　Environmental conditions during transport must remain within specified limits:

　　Temperature range: -20°C to 50°C

　　Humidity: 15% to 85% non-condensing

　　Maximum vibration: 1.5G for frequencies up to 200Hz

　　No exposure to corrosive chemicals or salt spray

　　For international shipments, compliance with International Air Transport Association (IATA) regulations for lithium battery transport is mandatory, as the system contains backup power units. All hazardous materials must be properly documented according to local and international regulations.

　　Operational Procedures and Usage Guidelines

　　System Installation and Setup

　　The installation process requires a prepared site meeting specific requirements. The operating area must provide a firm, level surface capable of supporting the system's weight distribution, with minimum dimensions of 4m × 4m. Ensure adequate clearance around the unit: 2 meters on all sides for ventilation and service access. The location must have appropriate power infrastructure, typically requiring a 3-phase 480V AC power source with minimum 600A capacity.

　　Setup procedure follows this sequence:

　　Position the main power unit using appropriate lifting equipment

　　Install grounding system according to local electrical codes

　　Connect primary power input using provided heavy-duty cables

　　Deploy cooling system components and verify fluid connections

　　Install and secure tether management system

　　Connect control and monitoring interfaces

　　Perform pre-power verification checks

　　Power-Up and Operational Sequence

　　Initiating system operation requires strict adherence to the prescribed sequence. Begin with the pre-start checklist, verifying all safety systems are operational, emergency stops are reset, and all protective covers are in place. Engage the primary power input and monitor the system initialization process, which typically requires 3-5 minutes for complete self-testing and system verification.

　　The operational sequence includes:

　　System initialization and self-diagnostic

　　Cooling system activation and verification

　　DC power generation and stability check

　　Tether interface power application

　　Load verification and stability monitoring

　　Continuous operational parameter tracking

　　Normal Operation and Monitoring

　　During normal operation, continuous monitoring of key parameters is essential. The primary control interface displays real-time data including input voltage (450-480V AC), output power (0-480KW), system temperature (maximum 75°C), and efficiency metrics (typically 92-95%). Operators must maintain regular log entries documenting operational parameters, environmental conditions, and any anomalies observed during the shift.

　　Load management requires careful attention to prevent exceeding system capabilities. The power output should be gradually increased to operational levels, avoiding sudden load changes that could trigger protective shutdowns. Regular verification of cooling system performance is critical, monitoring both air flow and liquid cooling systems depending on the specific configuration.

　　Comprehensive Safety Protocols and Procedures

　　Electrical Safety Requirements

　　The 480KW system operates at potentially lethal voltage levels, requiring strict adherence to electrical safety protocols. All personnel working with or near the system must possess appropriate electrical safety training and personal protective equipment including:

　　Category IV electrical gloves with leather protectors

　　Arc-flash rated face protection and clothing

　　Voltage-rated tools for all electrical work

　　Insulated mats and barriers where appropriate

　　Work on energized components follows the "no live work" principle wherever possible. When work on energized equipment is necessary, it must be performed under an approved energized work permit with additional safety observers present. The system incorporates multiple safety features including:

　　Automatic discharge circuits for capacitor banks

　　Visible break disconnects on all power inputs

　　Ground fault detection and interruption

　　Emergency power-off buttons at multiple locations

　　Emergency Procedures

　　Comprehensive emergency procedures must be established and regularly practiced. In case of electrical fault or fire, immediately activate the emergency power-off system, which cuts all power to the system within 0.5 seconds. Evacuate the immediate area and alert emergency response teams, providing specific information about the electrical nature of the equipment.

　　For personnel injury incidents, first ensure the power system is completely de-energized before approaching the affected individual. The system includes automatic lockout/tagout capability that can be activated remotely to prevent accidental re-energization during rescue operations. All facilities using the 480KW system must have appropriate first aid equipment and trained personnel available during all operational periods.

　　Operational Safety Measures

　　Daily safety verification includes inspection of all safety systems before operation begins. Verify the proper operation of emergency stop buttons, check the integrity of all safety interlocks, and confirm that all protective covers and barriers are in place. The system includes multiple redundant safety systems, but these must be verified regularly to ensure proper function.

　　Environmental safety measures include maintaining clear access to emergency equipment, proper storage of flammable materials, and implementation of weather monitoring for outdoor operations. The system should be shut down during lightning activity, high winds (above 50 km/h), or other severe weather conditions that could compromise safety.

　　Maintenance Procedures and Best Practices

　　Preventive Maintenance Schedule

　　Implementing a comprehensive preventive maintenance program is essential for reliable operation. The maintenance schedule is based on operational hours with additional calendar-based items for infrequently used systems.

　　Daily maintenance includes:

　　Visual inspection of all power connections

　　Verification of cooling system operation

　　Check of all status indicators and alarms

　　Cleaning of air intake filters

　　Inspection of tether connection points

　　Weekly maintenance tasks:

　　Thermal imaging of power components

　　Verification of calibration for all sensors

　　Testing of backup systems

　　Complete system performance verification

　　Detailed inspection of moving components

　　Monthly maintenance requirements:

　　Comprehensive electrical testing

　　Cooling system fluid analysis (if applicable)

　　Protective device testing

　　Firmware updates and system optimization

　　Complete system documentation review

　　Component-Specific Maintenance

　　Power conversion components require specific maintenance procedures. The main inverter system needs quarterly inspection of DC bus capacitors for swelling or leakage, semiannual thermal imaging under full load, and annual professional calibration of power measurement systems. The cooling system maintenance includes monthly verification of coolant levels, quarterly testing of pump performance, and annual replacement of coolant and filters.

　　Tether system maintenance involves daily inspection for physical damage, weekly testing of electrical continuity, and monthly verification of data transmission quality. The control system requires regular backup of configuration parameters, monthly verification of all sensor readings, and quarterly calibration of measurement systems.

　　Troubleshooting and Repair

　　System troubleshooting follows a structured approach beginning with symptom analysis and review of system logs. Common issues include power fluctuations (typically related to input power quality), overheating (often due to cooling system issues), and communication faults (usually cable or connector related). The system includes comprehensive self-diagnostic capabilities that identify approximately 85% of common faults.

　　For components requiring replacement, use only manufacturer-approved parts and follow specified procedures. Critical replacement procedures include:

　　Power semiconductor replacement requiring thermal interface renewal

　　Capacitor bank replacement following specific safety procedures

　　Control board replacement with configuration restoration

　　Sensor replacement with subsequent calibration

　　All repairs must be documented in the system maintenance log, including parts used, procedures followed, and verification testing performed. This documentation is essential for tracking component lifecycles and identifying recurring issues.

　　Advanced Operational Considerations

　　Performance Optimization

　　Maximizing system performance requires understanding the relationship between operational parameters and environmental conditions. Power output efficiency peaks between 40-80% of maximum capacity, with decreased efficiency at lower loads. The system includes programmable operational profiles that can be optimized for specific applications including continuous operation, variable load following, or peak shaving operation.

　　Environmental factors significantly impact performance. System derating begins at ambient temperatures above 35°C, with approximately 2% capacity reduction per 5°C temperature increase. Altitude also affects performance, with derating required above 1,000 meters elevation. Understanding these relationships enables optimal system application across varying operational environments.

　　Integration with Support Systems

　　The 480KW system typically operates as part of a larger operational ecosystem. Integration with external power monitoring systems enables coordinated power management and load balancing. Communication with drone flight control systems allows for automated power management based on flight patterns and operational requirements.

　　Support system integration includes:

　　Environmental monitoring for weather-based operation adjustments

　　Power quality monitoring for input power optimization

　　Remote operation capabilities for reduced on-site staffing

　　Data logging integration with broader operational systems

　　Long-Term Reliability Practices

　　Ensuring long-term reliability involves both operational practices and maintenance strategies. Operational practices include gradual power application to minimize thermal cycling stress, maintaining operational parameters within recommended ranges, and avoiding frequent full-power operation when not required. Maintenance strategies focus on predictive approaches using trend analysis of operational data to identify developing issues before they cause downtime.

　　Component lifecycle management tracks operational hours and environmental exposure to schedule replacement before end of life. Critical components have defined service intervals:

　　Power semiconductors: 20,000 operational hours

　　DC bus capacitors: 5 years or 30,000 hours

　　Cooling system pumps: 3 years or 15,000 hours

　　Control system components: 7 years

　　Implementation of these comprehensive transportation, operational, safety, and maintenance guidelines ensures that the 480KW tethered drone power system delivers reliable, safe performance throughout its operational lifespan. Regular training updates and procedure reviews help maintain the high standards required for operating this advanced power technology.
