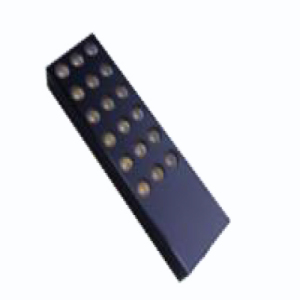

Product Name: Airborne Moment Light

　　Size: 150mm * 47mm * 35mm (single piece)

　　Weight: 160g

　　Supply voltage: 42V~60V

　　Peak power: 150W

　　Working temperature: -20 ℃~45 ℃

　　Brightness: 20000lm

　　Soft start: Soft start time of 3 seconds (maximum power output without control signal)

　　Thermal protection: Limit brightness by 10% above 80 ℃, automatically turn off above 85 ℃

　　Dimming function: brightness adjustment range 0-100%

　　Control mode: PWM

　　Introduction: Advanced Illumination for Aviation Applications

　　Airborne Moment Light systems represent a critical category of aviation lighting designed specifically for aircraft applications where precise, high-intensity illumination is required during specific operational moments. These sophisticated lighting solutions combine advanced LED technology, robust environmental sealing, and aviation-grade materials to deliver reliable performance in the demanding conditions encountered in aerial operations. Unlike conventional aircraft lighting, Moment Lights are engineered for intermittent high-intensity operation during critical phases such as approach, landing, search and rescue operations, or special mission requirements. This comprehensive guide details the structured maintenance requirements, specific installation conditions, standardized operational workflows, and the technological advantages that make these systems indispensable for modern aviation applications across commercial, military, and special mission aircraft fleets.

　　Section 1: Structured Maintenance Cycles and Procedures

　　Implementing a disciplined maintenance program is essential for ensuring the continued reliability and performance of Airborne Moment Light systems in aviation environments.

　　Daily and Pre-Flight Inspection Protocols

　　Before each flight operation, conduct a visual inspection of the Moment Light assembly. Verify the integrity of the lens surface, checking for cracks, crazing, or contamination that could reduce light output. Inspect the housing for signs of impact damage, corrosion, or loose fasteners. Check electrical connections for security and signs of arcing or corrosion. Perform a functional test by activating the light system through the aircraft's normal control interface, verifying proper illumination and any variable intensity settings. Document any anomalies in the aircraft maintenance log and address them before flight. For externally mounted units, ensure sealing surfaces remain intact and free from debris that could compromise environmental protection.

　　Scheduled Maintenance Intervals

　　Adhere to manufacturer-recommended maintenance intervals based on flight hours or calendar time, whichever comes first. At 100-hour intervals, perform detailed cleaning of optical components using approved aviation cleaning solvents and lint-free wipes. At 500-hour intervals, conduct electrical system testing including current draw verification, insulation resistance testing, and grounding continuity checks. Annually, complete comprehensive performance validation using calibrated light measurement equipment to verify maintained luminous intensity and beam pattern conformity. Every five years, or as specified by the manufacturer, replace critical components with known service life limitations such as thermal interface materials and sealing elements, even if no performance degradation is evident.

　　Component-Specific Maintenance Requirements

　　Different system components require specialized maintenance approaches. For LED-based systems, monitor junction temperature during operation and document gradual reductions in light output that might indicate thermal degradation. For the optical assembly, periodic verification of focus alignment ensures maintained beam pattern integrity. Electrical connectors should undergo contact resistance measurement during heavy maintenance checks, with replacement of contacts showing resistance increases above 10% from baseline. Cooling systems, whether passive or active, require regular inspection of heat transfer surfaces and verification of airflow paths. Document all maintenance actions in accordance with aviation regulatory requirements, maintaining complete traceability of components and service history.

　　Section 2: Critical Installation Conditions and Requirements

　　Proper installation is fundamental to achieving designed performance and ensuring regulatory compliance in aviation applications.

　　Environmental and Operational Limitations

　　Airborne Moment Lights must be installed within their specified operational envelopes. Verify the system's certification for altitude operation, typically covering ranges from sea level to 50,000 feet depending on aircraft type. Ensure compatibility with expected temperature extremes, from ground operation in desert conditions to high-altitude sub-zero environments. Consider vibration profiles specific to the installation location on the aircraft, selecting mounting provisions that accommodate the expected vibration spectrum. Verify electromagnetic compatibility with other aircraft systems, ensuring the lighting system neither generates unacceptable interference nor is susceptible to interference from other aircraft systems. For external installations, confirm resistance to aerodynamic forces, precipitation, and potential bird strike at operational airspeeds.

　　Physical Installation Specifications

　　Follow manufacturer-specified mounting requirements precisely. Use only approved fasteners with proper torque values and locking provisions appropriate for aviation applications. Ensure adequate clearance around the unit for thermal management and service access. For externally mounted units, maintain aerodynamic contours and avoid creating protrusions that could generate excessive drag or noise. Routing of electrical cables must follow aircraft-standard practices with proper clamping, chafe protection, and separation from other systems. Sealing of penetrations must maintain aircraft pressure integrity and prevent moisture ingress. Weight and balance considerations require documentation of installed weight and moment arm for inclusion in aircraft weight and balance records.

　　Electrical Integration Requirements

　　Electrical installation must comply with aircraft wiring standards and manufacturer specifications. Verify compatibility with aircraft power quality, including voltage variations, frequency stability, and transient protection requirements. Implement appropriate circuit protection in accordance with aircraft electrical system design standards. Ensure proper bonding and grounding to aircraft structure, typically requiring resistance measurements below specified thresholds. For systems with control interfaces, verify proper integration with aircraft control systems and annunciation panels. All electrical modifications must be documented in accordance with aviation regulatory requirements, with complete wiring diagrams and integration details included in aircraft technical records.

　　Section 3: Standardized Operational Procedures

　　Consistent operational procedures ensure reliable performance and prevent equipment damage during critical mission phases.

　　Pre-Operation Verification Sequence

　　Before engaging the Airborne Moment Light system, complete a systematic verification process. Confirm through aircraft systems monitoring that electrical power parameters are within specified limits. Verify that environmental conditions are within the system's operational envelope, particularly for external installations where airspeed and altitude limitations may apply. Check control system functionality through built-in test equipment or aircraft systems monitoring. Ensure that the intended operational area is clear of personnel or equipment that could be affected by the high-intensity output. For integrated systems, confirm proper interface with other aircraft systems such as navigation computers or mission management systems.

　　In-Flight Operational Protocols

　　During operation, monitor system parameters through available aircraft instrumentation. Observe current draw to verify normal operation and detect potential issues early. For variable intensity systems, utilize the minimum necessary intensity for the operational requirement to extend system life and reduce power consumption. Be aware of operational limitations during different flight phases, such as restrictions on use during refueling operations or in certain airspace. When operating in formation flight, coordinate lighting usage to prevent dazzling other aircrew. For mission-specific applications, follow established tactical lighting procedures that optimize effectiveness while maintaining operational security. Document system usage hours for maintenance tracking and performance trending.

　　Shutdown and Post-Operation Procedures

　　Following system operation, allow appropriate cool-down time before shutting down aircraft power, particularly for high-intensity systems. Document any system anomalies or performance variations in the aircraft maintenance log. For systems with usage recording capability, download and review operational data to identify trends or developing issues. During post-flight inspection, pay particular attention to the lighting system, checking for any signs of overheating or physical damage that might have occurred during operation. Update maintenance tracking systems with additional usage hours and note any maintenance requirements approaching based on usage intervals.

　　Section 4: Advanced Product Features and Technological Advantages

　　Airborne Moment Light systems incorporate sophisticated technologies that deliver significant operational benefits in aviation applications.

　　Advanced Optical System Design

　　The heart of the Moment Light system is its precision optical engineering. Utilizing total internal reflection principles and computer-optimized reflector geometries, these systems achieve exceptional light collection efficiency and precise beam control. Multi-segment LED arrays with individual optical elements provide uniform illumination without hotspots or artifacts. For applications requiring specific beam patterns, custom optic designs deliver precisely controlled distribution meeting exact mission requirements. The optical systems maintain performance stability across the operational temperature range through compensated mechanical design that accounts for thermal expansion characteristics of different materials. Anti-reflection coatings and hydrophobic treatments on external lens surfaces maximize light transmission and facilitate contamination removal during flight.

　　Intelligent Thermal Management Systems

　　Managing heat generation is critical for maintaining performance and reliability in high-power aviation lighting. Our Moment Light systems incorporate advanced thermal management using aircraft-grade heat sinks, phase change materials, and in some applications, active cooling systems. Temperature monitoring circuits provide real-time thermal data to control systems, enabling automatic output adjustment to maintain safe operating temperatures. The thermal path design ensures efficient heat transfer from LED junctions to the ultimate heat sink, typically the aircraft structure or ambient air. This sophisticated thermal management enables sustained high-intensity operation without performance degradation, even in challenging environmental conditions.

　　Robust Environmental Protection and Durability

　　Built to withstand the harsh conditions of aviation operations, these lighting systems feature hermetic sealing that prevents moisture ingress and protects sensitive electronics. Housing materials are selected for strength-to-weight ratio, corrosion resistance, and compatibility with aircraft fluids. Connector systems utilize aviation-standard interfaces with positive locking and environmental sealing. The systems are designed to withstand exposure to vibration, shock, acceleration, and pressure cycling encountered in normal aircraft operations. Qualification testing typically includes exposure to temperature cycling, humidity, salt fog, fluid compatibility, and mechanical shock and vibration profiles specific to the intended aircraft installation location.

　　Smart Control and Integration Capabilities

　　Modern Airborne Moment Lights incorporate intelligent control systems that enhance functionality and simplify integration. Digital interface options including ARINC 429, CAN bus, or Ethernet enable seamless integration with aircraft systems. Programmable intensity control allows optimization for different operational scenarios. Built-in test equipment provides health monitoring and fault isolation capabilities, reducing maintenance time and improving dispatch reliability. For mission-specific applications, specialized control modes such as strobe patterns, coded sequences, or synchronized multi-unit operation expand system capabilities. These intelligent features reduce pilot workload while increasing system utility across diverse operational scenarios.

　　Conclusion: Enhancing Aviation Operations Through Advanced Lighting

　　Airborne Moment Light systems represent a critical enabling technology for modern aviation operations, providing reliable high-intensity illumination when and where it's needed most. The structured maintenance approach, precise installation requirements, standardized operational procedures, and advanced technological features detailed in this guide ensure that these systems deliver consistent performance in the demanding aviation environment. By understanding and implementing these guidelines, operators can maximize system reliability, maintain regulatory compliance, and fully leverage the capabilities these advanced lighting systems provide.

　　The combination of robust construction, sophisticated thermal management, precision optics, and intelligent control interfaces makes Airborne Moment Lights a valuable asset for commercial, military, and special mission aircraft applications. As aviation technology continues to evolve, these lighting systems will play an increasingly important role in enabling safe and effective aircraft operations across the full spectrum of flight missions and environmental conditions.
