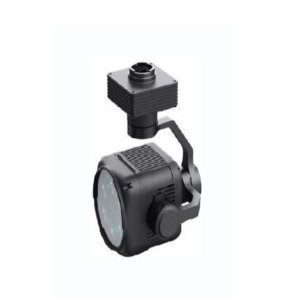

Product Name: Three axis high-power Searchlight

　　Product model: YL-1 Size: 168 * 157 * 205mm

　　Product weight: 1.28kg

　　Airborne quick release weight: 72g

　　Installation method: quick release

　　Supply voltage: 40V~80V

　　Working temperature: -20 ℃~45 ℃

　　※ Peak power: 300W

　　Output angle FOV: 16.7 °

　　※ Luminous flux: Long brightness 30000lm ± 3% (power: 300W)

　　Light efficiency: 100lm/W (power: 300W)

　　Spot diameter: 15m (distance: 50M)/30m (distance: 100M)

　　Exploration area: 176 square meters (distance: 50M)/706 square meters (distance: 100M)

　　Function mode: Long on/Burst flashing

　　Pan tilt angle: pitch: -90 °~+30 °/direction: ± 175 °; Rolling self stabilization

　　※ Control method: Smart Load APP

　　Introduction: Maximizing Searchlight Performance and Longevity

　　Modern searchlights represent sophisticated electro-optical systems designed for demanding applications across marine, industrial, emergency response, and security sectors. These high-intensity illumination tools incorporate advanced optical systems, powerful light sources, and robust mechanical components that require proper care and handling to maintain optimal performance. Whether utilizing traditional halogen, HID, or cutting-edge LED technologies, searchlights share common maintenance requirements and operational considerations that significantly impact their service life and reliability. This comprehensive guide provides detailed information on proper maintenance procedures, critical safety considerations, systematic operational protocols, and ideal storage conditions to help users maximize their investment while ensuring consistent performance when needed most.

　　Section 1: Essential Maintenance Techniques for Optimal Performance

　　Regular maintenance is crucial for preserving searchlight functionality and extending operational lifespan. Implementing a structured maintenance program prevents unexpected failures and maintains illumination quality.

　　Routine Cleaning and Inspection Procedures

　　The optical system requires meticulous care to maintain light transmission efficiency. Exterior lenses should be cleaned weekly using a soft, lint-free cloth moistened with optical-grade isopropyl alcohol. For stubborn residues, use a specialized optical cleaning solution applied with a clean microfiber cloth, always wiping in a circular motion from center to edges. Monthly inspections should verify lens integrity, checking for minute cracks or hazing that can scatter light. Housing surfaces should be wiped with a damp cloth and mild detergent, followed by thorough drying. Pay particular attention to ventilation ports, ensuring they remain free of obstructions that could impede airflow and cause overheating.

　　Electrical System Maintenance

　　Electrical connections demand regular attention due to vibration and environmental exposure. Bi-monthly inspections should include verification of terminal tightness and checking for corrosion at all connection points. Apply appropriate anti-corrosion compounds to electrical contacts based on environmental conditions. Quarterly testing should verify proper grounding continuity with resistance measurements not exceeding 0.1 ohm. For motorized units, inspect wiring harnesses for chafing or deterioration, particularly at pivot points and cable entry locations. Annually, perform insulation resistance testing on power cables and internal wiring, with values exceeding 100 megohms indicating healthy insulation.

　　Mechanical Component Servicing

　　Mechanical systems require lubrication and adjustment to maintain smooth operation. Pan and tilt mechanisms should be lubricated quarterly using manufacturer-recommended greases, applying sparingly to avoid attracting dust. Monthly verification of mounting hardware torque prevents loosening from vibration. Semi-annually, inspect gear trains for wear and proper meshing, adjusting backlash where provisions exist. For units with cooling systems, verify fan operation and clean air passages monthly. Sealing surfaces should be inspected quarterly, with gaskets replaced if compression set exceeds 25% of original thickness or if any hardening or cracking is visible.

　　Section 2: Critical Usage Considerations and Safety Protocols

　　Understanding operational limitations and safety requirements prevents equipment damage and ensures user safety during searchlight operation.

　　Environmental Limitations and Protection

　　Searchlights have specific environmental operating ranges that must be respected. Most units are rated for operation between -25°C and 50°C ambient temperature, with derated performance at extremes. Avoid rapid temperature transitions that can cause thermal shock to optical components. In marine environments, prevent salt accumulation by rinsing with fresh water after operation, paying particular attention to crevices and cooling fins. During precipitation, most industrial searchlights can operate safely, but avoid directing water jets at ventilation openings or lens seals. In dusty environments, more frequent filter maintenance may be necessary to prevent overheating.

　　Electrical Safety Requirements

　　Proper electrical installation is fundamental to safe operation. Ensure power source compatibility with searchlight specifications, including voltage, frequency, and phase requirements. Install appropriately rated circuit protection, typically 125-150% of maximum operating current, to prevent wiring damage during faults. Grounding must comply with local electrical codes, typically requiring a dedicated equipment grounding conductor. For permanent installations, use weatherproof connectors rated for the environment, with drip loops in cable runs to prevent water ingress. Temporary installations require GFCI protection when operating in damp locations or where contact with water is possible.

　　Operational Safety Precautions

　　The intense light output requires careful handling to prevent hazards. Never look directly into the beam, even from significant distances, as permanent eye damage can occur. Position searchlights to avoid illuminating occupied spaces, flight paths, or navigation channels where confusion could occur. During maintenance, allow high-intensity discharge lamps to cool completely before handling to prevent burns from hot surfaces. Establish a clear safety perimeter during operation, particularly with high-wattage units that generate significant heat at the lens surface. Always disconnect power before performing any internal maintenance or component replacement.

　　Section 3: Comprehensive Operational Procedures

　　Following systematic operational procedures ensures reliable performance and prevents equipment damage during use.

　　Pre-Operation Checklist

　　Before energizing the searchlight, complete a thorough visual inspection. Verify the lens is clean and free of obstructions. Check housing integrity, ensuring no visible damage that could compromise weather resistance. Confirm mounting stability, with all fasteners secure and no excessive play in movement mechanisms. Inspect power cables for damage, with particular attention to areas near connectors and points of movement. For portable units, verify battery charge level or generator fuel status. Ensure the immediate area is clear of combustible materials at least three meters from the light output. Confirm all control connections are secure and properly configured for the intended operation.

　　Startup and Operational Sequence

　　Power-up should follow a controlled sequence to minimize thermal stress. For HID searchlights, initiate power without immediately activating the lamp, allowing control electronics to initialize. Activate the lamp and allow the system to reach full intensity gradually, typically 2-5 minutes depending on technology. During this warm-up period, avoid sudden movements that could damage the lamp. For LED systems, power can typically be applied directly, though some systems benefit from gradual intensity ramping. Once operational, make initial movements slowly to verify smooth mechanism operation before proceeding to rapid scanning. Monitor initial operation for unusual sounds, odors, or erratic behavior that might indicate developing problems.

　　Runtime Monitoring and Shutdown Procedures

　　During operation, periodically verify normal functioning. Check for consistent light output without flickering or color variations. Monitor housing temperature, which should stabilize within manufacturer-specified ranges. Listen for unusual mechanical noises that might indicate developing bearing or gear issues. For extended operations, document runtime hours for maintenance scheduling. Proper shutdown is equally important - for HID systems, allow a cool-down period of 5-10 minutes before disconnecting power to extend lamp life. For all systems, return the searchlight to its neutral or stowed position before power removal. After shutdown, perform a brief post-operation inspection, noting any issues for future maintenance.

　　Section 4: Optimal Storage Conditions and Preservation

　　Proper storage preserves searchlight condition during periods of non-use and prevents degradation of critical components.

　　Short-Term Storage Guidelines (Under 30 Days)

　　For temporary storage, begin with thorough cleaning of all exterior surfaces. Ensure the searchlight is completely dry before storage, paying particular attention to crevices where moisture can accumulate. Disconnect power sources and protect connectors from environmental exposure using protective caps. Store in a clean, dry environment with stable temperature conditions. Position the unit to avoid stress on movement mechanisms, typically in the neutral position. If stored outdoors, use a breathable protective cover that prevents moisture accumulation while allowing ventilation. Monthly during storage, briefly exercise movement mechanisms to maintain lubrication distribution and prevent seal hardening.

　　Long-Term Storage Protocols (Over 30 Days)

　　Extended storage requires comprehensive preservation procedures. After thorough cleaning, apply protective coating to metal surfaces susceptible to corrosion. Remove batteries from portable units and store separately in appropriate conditions. Protect optical surfaces with manufacturer-approved covers, avoiding direct contact with the lens. Document storage conditions including date placed in storage and any preservation measures applied. Create a storage maintenance schedule that includes quarterly inspections for environmental damage, pest intrusion, or developing corrosion. Every six months, perform a functional test without full activation to verify system integrity, checking electrical continuity and mechanical freedom.

　　Environmental Control and Monitoring

　　Storage environment significantly impacts preservation effectiveness. Maintain temperature between 10°C and 25°C with relative humidity below 60% to prevent condensation and corrosion. Ensure adequate ventilation to prevent stagnant air and moisture accumulation. Protect from direct sunlight which can degrade seals and plastic components. Implement pest control measures to prevent nesting or wiring damage. For valuable units, consider environmental monitoring with data loggers tracking temperature, humidity, and light exposure. Avoid storage near chemicals or vapors that could degrade materials or cause corrosion. Implement access controls to prevent unauthorized handling during storage periods.

　　Conclusion: Systematic Care for Reliable Performance

　　Searchlights represent significant investments that deliver critical functionality when properly maintained and operated. By implementing the maintenance techniques, safety protocols, operational procedures, and storage guidelines outlined in this document, organizations can ensure their searchlight systems provide reliable service throughout their operational lifespan. The comprehensive approach detailed here addresses both immediate operational needs and long-term preservation requirements, supporting mission-critical applications where illumination performance cannot be compromised.

　　Regular adherence to these guidelines minimizes unexpected failures, reduces total cost of ownership, and ensures that searchlight systems perform as required during emergency situations and routine operations alike. For specific technical support or application-specific guidance, consult the manufacturer's documentation or contact technical support services for detailed assistance with your particular searchlight models and operational requirements.
