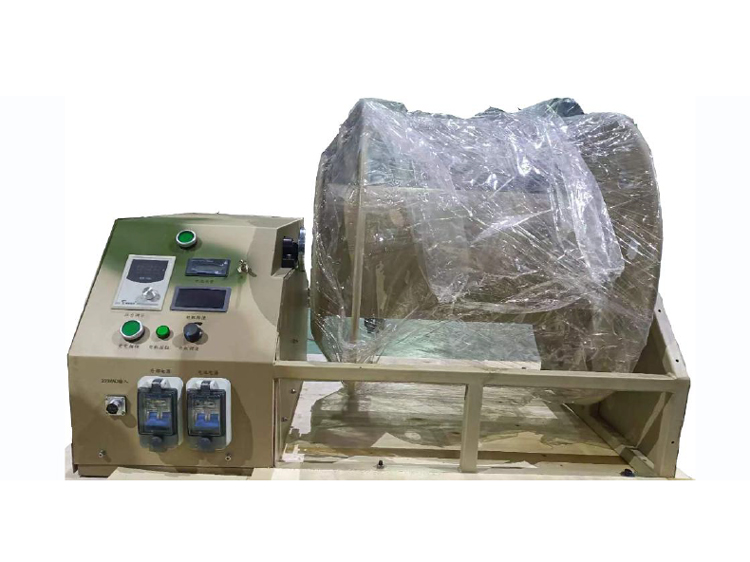

100 meters to 10000 meters Portable Cable Retraction System

　　The portable electric cable retraction system is suitable for the rapid deployment and retraction of field cables in different environments and scenarios. It can be used in both fixed and mobile states, and can quickly and electrically deploy and retract field cables. It has the characteristics of high efficiency, safety, stability, and electronic control assistance. Suitable for military deployment, engineering construction, temporary field installation, emergency communication support and other related fields, providing efficient solutions for fiber optic cable deployment and collection in various outdoor environments.

　　Composition and Function:

　　The optical cable portable electric retractable table consists of a speed regulating motor component, a tension clutch component, an optical cable transmission guide component, a power supply system component, and other parts.

　　The functions of each component are as follows:

　　1. Adjustable speed motor component: Provides the power required for cable reel retraction and can also tune the motor power to adjust the speed of cable reel retraction.

　　2. Tension clutch component: It can provide variable tension to adapt to the tension during deployment and avoid damaging the fiber core.

　　3. Fiber optic cable drive guide component: It can control the guidance of fiber optic cable deployment and retraction, and adjust it evenly around the cable reel through a screw according to different cable diameters.

　　4. Power supply system components: provide power supply for the entire platform.

　　Technical Specifications:

　　1. Power supply mode: Supports mains power, oil engine 220V, 24V DC power supply

　　2. The total power of the cable reel is 180W (customizable)

　　3. Cable reel tuning speed: adaptive 0~12km

　　4. Panel control: supports start, stop, and speed control functions

　　5. Braking modes: manual, active, multi speed, pull rod braking

　　6. Status display: Real time display of motor tunable power size

　　7. Laying tension: 0~5KG

　　Portable Cable Retraction System: Complete Quality and Technical Guide

　　Introduction to Advanced Cable Management

　　The Portable Cable Retraction System represents a significant advancement in cable management technology, specifically designed for industrial applications requiring reliable and efficient cable deployment and retrieval. This sophisticated system combines robust engineering with user-friendly operation, providing a complete solution for managing power and data cables in demanding environments. Whether used in Tethered Drone operations, emergency response scenarios, or mobile broadcasting applications, this retraction system ensures cable integrity while maximizing operational efficiency.

　　Our commitment to excellence begins with rigorous quality control measures and extends through detailed technical specifications, comprehensive installation guidelines, and essential operational precautions. This guide provides complete transparency about the system's capabilities, proper handling procedures, and the quality standards that ensure reliable performance in various operational contexts.

　　Comprehensive Quality Control Measures

　　Material Selection and Verification

　　Every Portable Cable Retraction System begins with meticulous material selection and verification processes. The system's structural components utilize aerospace-grade aluminum alloys that undergo spectrochemical analysis to verify composition and mechanical properties. All polymer elements are manufactured from UV-stabilized engineering-grade materials that withstand environmental degradation while maintaining flexibility and strength in temperature extremes from -40°C to 85°C.

　　The cable itself represents the pinnacle of quality assurance, with each production batch subjected to accelerated life testing that simulates 10,000 deployment cycles. The manufacturing process includes continuous monitoring of conductor purity, insulation thickness consistency, and shielding effectiveness. Each completed cable undergoes high-potential testing at 2,500 volts DC and megger testing at 1,000 volts to verify insulation integrity before integration into the retraction system.

　　Manufacturing Process Controls

　　The manufacturing process implements statistical process control at every production stage, with real-time monitoring of critical parameters including torque application for fasteners, tension during cable spooling, and alignment during assembly. Automated optical inspection systems verify component orientation and connection integrity, while manual inspection stations employ trained technicians to identify subtle defects that automated systems might miss.

　　Each assembly station follows standardized work instructions with integrated quality checkpoints that prevent the progression of non-conforming products. The final assembly process includes functional testing of the retraction mechanism under various load conditions, verification of electrical continuity through all slip ring contacts, and performance validation of the tension management system. These comprehensive controls ensure consistent quality across all production units.

　　Final Validation and Certification

　　Before shipment, each system undergoes a comprehensive validation protocol that includes 24-hour continuous operation testing, environmental conditioning from -20°C to 60°C, and performance verification under simulated operational conditions. The validation process documents over 50 separate parameters including retraction speed consistency, motor current draw, temperature rise during operation, and noise levels during deployment and retrieval.

　　The system achieves certification to multiple international standards including ISO 9001:2015 for quality management systems, IEC 60529 for ingress protection (rated IP54), and CE marking for European market compliance. Each unit ships with a complete test report documenting all validation results and a certificate of conformity confirming compliance with specified requirements. This documentation provides customers with independent verification of product quality and performance.

　　Critical Operational Precautions

　　Safety Considerations During Operation

　　Operating the Portable Cable Retraction System requires adherence to specific safety protocols to prevent equipment damage and ensure personnel safety. Always maintain clear awareness of the deployment path, ensuring the cable cannot contact sharp edges, hot surfaces, or moving machinery. The system incorporates multiple safety features including overload protection, emergency stop functionality, and automatic tension control, but these do not replace operator vigilance and proper procedures.

　　Environmental limitations require strict observation. Do not operate the system in standing water or during precipitation that exceeds the IP54 rating specifications. Avoid operation in ambient temperatures outside the specified range of -20°C to 50°C, and never expose the system to corrosive chemicals or explosive atmospheres unless specifically configured for such environments. These precautions prevent equipment damage and maintain warranty coverage.

　　Deployment and Retrieval Best Practices

　　Proper deployment techniques significantly extend cable life and maintain system reliability. Always initiate deployment at moderate speed, allowing the cable to stabilize before increasing to operational velocity. Monitor cable alignment on the drum during both deployment and retrieval, immediately pausing operation if misalignment is observed. Never exceed the maximum deployment speed of 2 meters per second, as higher velocities can generate excessive heat in the motor and control systems.

　　During retrieval, maintain slight tension on the cable to ensure even spooling but avoid forcing the cable against significant resistance. If the system detects an overload condition, immediately cease operation and investigate the cause before resuming. Regular visual inspection during retrieval helps identify potential cable damage early, allowing prompt intervention before minor issues become significant problems.

　　Maintenance and Storage Guidelines

　　Proper maintenance begins with regular cleaning using approved methods. Use only mild detergent solutions and soft cloths for exterior cleaning, avoiding high-pressure sprays that could force contaminants into sealed areas. Lubricate moving parts according to the maintenance schedule using only manufacturer-recommended lubricants, as incompatible products can damage components and void warranties.

　　Storage conditions significantly impact system longevity. Store the unit in a clean, dry environment with temperature maintained between -10°C and 40°C. Before extended storage, perform a complete inspection, clean all components thoroughly, and apply protective coatings to exposed metal surfaces. For storage periods exceeding 30 days, rotate the drum periodically to prevent permanent set in the cable and maintain bearing lubrication distribution.

　　Detailed Technical Specifications

　　Mechanical System Parameters

　　The retraction system incorporates a precision-engineered mechanical platform designed for reliability and performance. The drum assembly features a corrosion-resistant aluminum core with composite flanges, providing an overall cable capacity of 150 meters of 8mm diameter hybrid cable. The drum width measures 320mm with a flange diameter of 450mm, optimized for minimal cable bend radius while maintaining compact dimensions.

　　The drive system utilizes a brushless DC motor capable of generating 45 Newton-meters of torque, coupled with a planetary gear reduction system providing 25:1 reduction ratio. This configuration delivers smooth operation with maximum retrieval speed of 1.5 meters per second under full load conditions. The system incorporates an electromagnetic brake with automatic engagement when power is removed, preventing uncontrolled cable deployment.

　　Electrical System Characteristics

　　Power requirements include both main operating power and control system power. The main drive motor operates from 48VDC nominal, with acceptable input range from 40VDC to 60VDC. The control system requires 24VDC with isolation from the motor power supply to ensure signal integrity. Total power consumption during typical operation averages 450 watts, with peak consumption of 850 watts during maximum load retrieval.

　　The integrated slip ring assembly provides 6 power circuits rated at 10 amps each and 12 signal circuits with gold-plated contacts for reliable data transmission. The slip ring design ensures less than 20 milliohms contact resistance throughout the rated lifespan of 1,000,000 rotations. Electrical noise generation is controlled to less than 50mV peak-to-peak on power circuits and 10mV on signal circuits, ensuring compatibility with sensitive electronic equipment.

　　Performance and Environmental Specifications

　　Performance metrics demonstrate the system's capabilities across various operational scenarios. The retraction system achieves consistent performance with deployment accuracy of ±0.5 meters over the full 150-meter range. Cable tension is maintained between 15 and 45 Newtons throughout operation, with automatic compensation for changing load conditions.

　　Environmental specifications ensure reliable operation across challenging conditions:

　　Operating temperature range: -20°C to 50°C

　　Storage temperature range: -30°C to 70°C

　　Relative humidity: 5% to 95% non-condensing

　　Maximum operational altitude: 3,000 meters

　　Vibration resistance: 1.5G from 10Hz to 500Hz

　　Shock resistance: 10G for 11 milliseconds

　　Installation Diagrams and Configuration

　　System Component Identification

　　The Portable Cable Retraction System consists of several key components that must be properly identified during installation. The main assembly includes the drum housing with integrated motor and control electronics, the support frame with mounting provisions, the cable guide assembly with integrated sensors, and the control panel with status indicators and interface connections.

　　External components include the power supply unit with input conditioning, the remote control interface with emergency stop capability, and the cable end fitting with integrated connector protection. Each component features laser-etched identification markings that correspond to installation documentation, ensuring correct assembly and connection sequence.

　　Mechanical Installation Procedure

　　Proper mechanical installation begins with positioning the system on a stable, level surface capable of supporting the operational weight of 85 kilograms. The installation location must provide adequate clearance: 500mm minimum on the cable deployment side, 300mm on the control panel side, and 200mm on all other sides for ventilation and service access.

　　Mounting procedures vary based on application requirements:

　　For fixed installations: Use the provided M10 mounting holes with grade 8.8 or better fasteners

　　For mobile platforms: Utilize the vibration-isolating mounting system with locking fasteners

　　For temporary deployments: Engage the integrated stabilizer feet and security attachment points

　　Following mounting, install the cable guide system according to the specific deployment geometry. The guide rollers must be aligned to ensure smooth cable transition from the drum to the deployment path, with particular attention to minimizing bend angles and abrasion points.

　　Electrical Integration and Connection

　　Electrical installation follows a systematic approach to ensure proper operation and safety. Begin with power connections, routing cables through the provided strain relief components and securing with appropriate torque values. Control system connections include the remote operation interface, sensor inputs, and communication interfaces for system monitoring.

　　The integration process includes:

　　Primary power connection with proper polarity verification

　　Grounding system installation meeting local electrical codes

　　Control interface wiring with shielded cables

　　Sensor system calibration and verification

　　Communication interface configuration and testing

　　Each connection point features color-coded terminals and mechanical keying to prevent incorrect installation. After completing all connections, perform insulation resistance testing and functional verification before applying full operational power.

　　System Commissioning and Verification

　　The commissioning process validates proper installation and prepares the system for operational service. Begin with a visual inspection verifying all mechanical fasteners are properly torqued, electrical connections are secure, and safety systems are functional. Progress through the power-up sequence, monitoring system initialization and verifying normal status indicators.

　　Performance verification includes:

　　Manual rotation test to verify free movement when disengaged

　　Low-speed operational test to confirm proper motor function

　　Full-stroke deployment and retrieval to validate cable management

　　Load testing with calibrated weights to verify tension control

　　Emergency stop functionality testing from multiple locations

　　Document all commissioning activities in the system log, including measurements, observations, and any adjustments performed. This documentation provides a baseline for future maintenance and supports warranty claims if issues arise later in the system lifecycle.

　　Operational Optimization and Troubleshooting

　　Performance Monitoring Techniques

　　Effective performance monitoring involves tracking key parameters during normal operation. Establish baseline measurements for motor current during typical deployment and retrieval cycles, noting variations that might indicate developing issues. Monitor operating temperature during extended operations, as abnormal temperature rise often precedes component failure.

　　Implement a routine inspection schedule that includes:

　　Daily visual inspection of cable condition and spooling alignment

　　Weekly verification of tension control system calibration

　　Monthly performance testing under controlled conditions

　　Quarterly comprehensive system inspection and maintenance

　　Document all observations and measurements in the system maintenance log, enabling trend analysis that identifies gradual degradation before operational impact occurs.

　　Common Operational Issues and Resolution

　　Despite robust design and quality manufacturing, operational issues may occasionally occur. The most common issues include irregular spooling, which typically results from incorrect tension settings or cable guide misalignment. Motor overload conditions often indicate excessive friction in the cable path or binding in the guide system.

　　Systematic troubleshooting approaches include:

　　Reviewing system error logs and operational data

　　Performing visual inspection of all mechanical components

　　Verifying electrical parameters including voltage and current

　　Testing individual subsystems in isolation

　　Consulting technical support for persistent issues

　　For each resolved issue, update the system documentation with the problem description, investigation process, corrective actions, and verification testing. This information proves invaluable for addressing future occurrences and supporting continuous improvement initiatives.

　　Through adherence to these comprehensive guidelines for quality understanding, precautionary measures, technical specification compliance, and proper installation procedures, the Portable Cable Retraction System delivers reliable performance throughout its operational lifespan. The integration of rigorous quality control with detailed technical documentation ensures that users can maximize system capabilities while maintaining safety and reliability in various application environments.
